Accesorios de tubería forjados

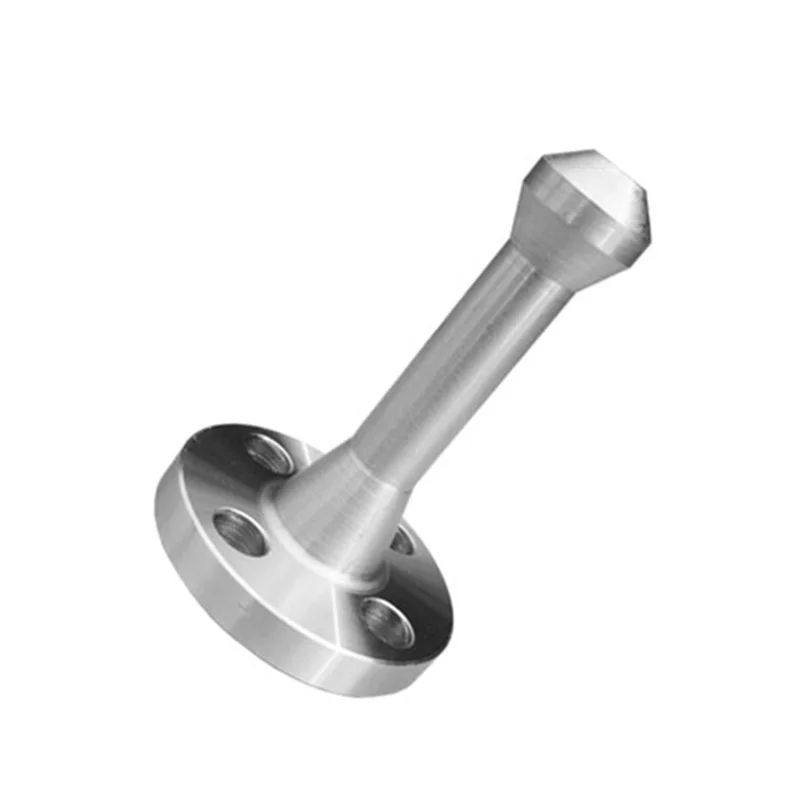

Flanged Nipple Outlet

Solicitud:

Size: 1/8"-4" threaded and socket weld type

Pressure:

Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)

Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)

Conection: Thread (NPT, BSP,RP, G) ,Socket Welding

Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.

Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;

Material: Stainless steel, Carbon steel and Duplex stainless steel

Especificación:

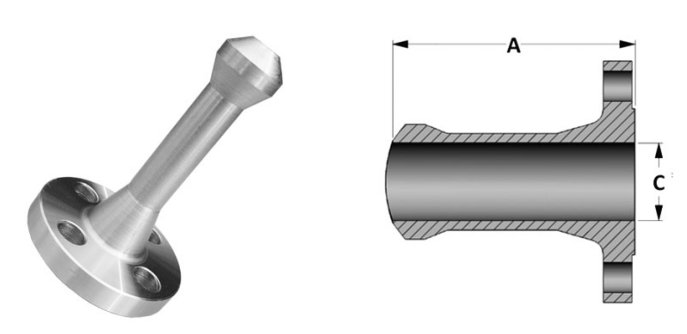

Flanged Nipple Outlet Dimension

PIPE	150#		300#		600#		1500#		2500#
SIZE	A	C	A	C	A	C	A	C	A	C
1/2	5.906	---	5.906	---	5.906	---	5.906	---	5.906	---
3/4	5.906	---	5.906	---	5.906	---	5.906	---	5.906	---
1	5.906	---	5.906	---	5.906	---	5.906	---	5.906	---
2001/1/4	5.906	---	5.906	---	5.906	---	5.906	---	5.906	---
2001/1/2	5.906	---	5.906	---	5.906	---	5.906	---	5.906	---
2	5.906	---	5.906	---	5.906	---	5.906	---	6.496	---

Note:All dimensions are in inches • Weights are based on Carbon Steel
