Brida

Especificación:

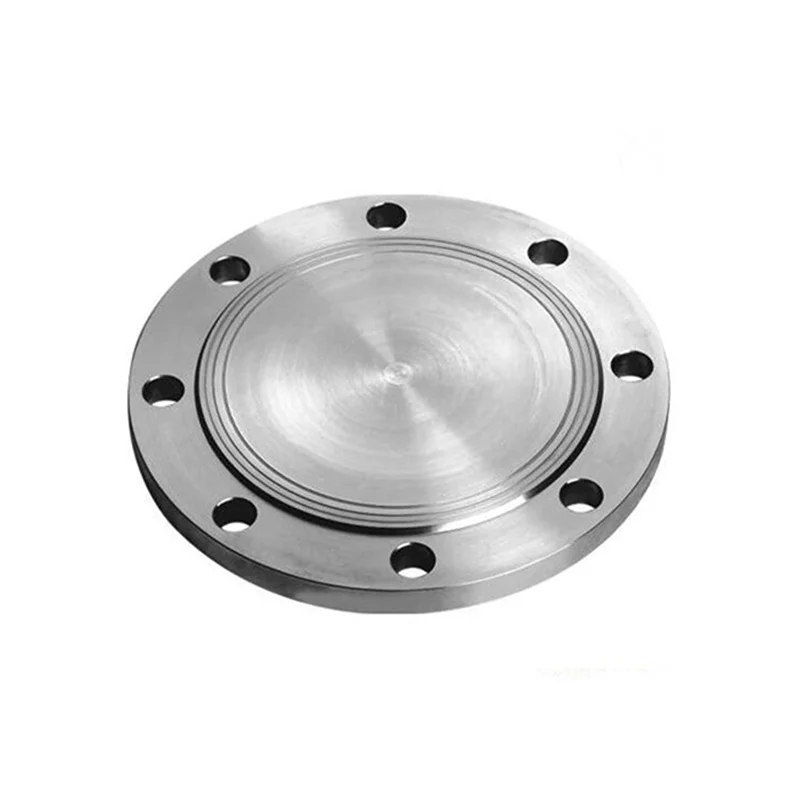

Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 150 Bida ciega

PipeFlangeRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDbgNumberlk
sizein.in.in.in.in.in.Pounds

mmmmmmmmmmmmKgs
1/2"0,843,500,441,3840,622,380,9
21,388,911,235,115,760,50,42
3/4"1,053,880,501,6940,622,751,3
26,798,612,742,915,769,90,61
1"1,3154,250,562,0040,623,121,9
33,4108,014,250,815,779,20,86
1 1/4"1,664,620,622,5040,623,502,6
42,2117,315,763,515,788,91,17
1 1/2"1,905,000,692,8840,623,883,4
48,3127,017,573,215,798,61,53
2"2,3756,000,753,6240,754,755,3
60,3152,419,191,919,1120,72,42
2 1/2"2,8757,000,884,1240,755,508,7
73,0177,822,4104,619,1139,73,94
3"3,507,500,945,0040,756,0010,9
88,9190,523,9127,019,1152,44,93
3 1/2"4,008,500,945,5080,757,0013,6
101,6215,923,9139,719,1177,86,17
4"4,509,000,946,1980,757,5015,4
114,3228,623,9157,219,1190,57,00
5"5,56310,000,947,3180,888,5019,0
141,3254,023,9185,722,4215,98,63
6"6,62511,001,008,5080,889,5024,9
168,3279,425,4215,922,4241,311,3
8"8,62513,501,1210,6280,8811,7543,2
219,1342,928,4269,722,4298,519,6
10"10,7516,001,1912,75121,0014,2563,4
273406,430,2323,925,4362,028,8
12"12,7519,001,2515,00121,0017,0095,2
323,8482,631,8381,025,4431,843,2
14"14,021,001,3816,25121,1218,75128
355,6533,435,1412,828,4476,358,1
16"16,023,501,4418,50161,1221,25167
406,4596,936,6469,928,4539,876,0
18"18,025,001,5621,00161,2522,75206
457,2635,039,6533,431,8577,993,7
20"20,027,501,6923,00201,2525,00269
508698,542,9584,231,8635,0122
24"24,032,001,8827,25201,3829,50408
609,6812,847,8692,235,1749,3185


Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 300 Pida ciega

PipeFlangeRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDbgNumberlk
sizein.in.in.in.in.in.Pounds

mmmmmmmmmmmmKgs
1/2"0,843,750,561,3840,622,621,4
21,395,214,235,015,766,50,64
3/4"1,054,620,621,6940,753,252,4
26,7117,315,742,919,082,51,11
1"1,3154,880,692,0040,753,503,1
33,4123,917,550,819,088,91,39
1 1/4"1,662,250,752,5040,883,883,9
42,2133,319,063,522,398,51,79
1 1/2"1,906,120,812,8840,754,505,9
48,3155,420,673,219,0114,32,66
2"2,3756,500,883,6280,885,007,0
60,3165,122,391,922,3127,03,18
2 1/2"2,8757,501,004,1280,885,8810,7
73,0190,525,4104,622,3149,34,85
3"3,508,251,125,0080,886,6215,0
88,9209,528,4127,022,3168,16,81
3 1/2"4,009,001,195,5080,887,2519,2
101,6228,630,2139,722,3184,18,71
4"4,5010,001,256,1980,887,8825,3
114,3254,031,7157,222,3200,111,5
5"5,56311,001,387,3180,889,2534,4
141,3279,435,0185,722,3234,915,6
6"6,62512,501,448,50120,8810,6246,0
168,3317,536,5215,922,3269,720,9
8"8,62515,001,6210,62121,0013,0075,6
219,1381,041,1269,725,4330,234,3
10"10,7517,501,8812,75161,1215,25117
273444,547,7323,928,4387,353,3
12"12,7520,502,0015,00161,2517,75174
323,8520,750,8381,031,7450,878,8
14"14,023,002,1216,25201,2520,25231
355,6584,253,8412,831,7514,3105
16"16,025,502,2518,50201,3822,50302
406,4647,757,1469,935,0571,5137
18"18,028,002,3821,00241,3824,75386
457,2711,260,4533,435,0571,5175
20"20,030,502,5023,00241,3824,75487
508774,763,5584,235,0628,6221
24"24,036,002,7527,25241,6232,00747
609,6914,469,8692,241,1812,8339


Dimensiones y gráficos de peso para ASME/ANSI B16.5 Class600 Bida ciega

PipeFlangeRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDbgNumberlk
sizein.in.in.in.in.in.Pounds

mmmmmmmmmmmmKgs
1/2"0,843,750,561,3840,622,621,7
21,395,314,235,115,766,50,76
3/4"1,054,620,621,6940,753,252,8
26,7117,315,742,919,182,61,28
1"1,3154,880,692,0040,753,503,5
33,412417,550,819,188,91,60
1 1/4"1,665,250,812,5040,753,884,9
42,2133,420,663,519,198,62,23
1 1/2"1,906,120,882,8840,884,507,2
48,3155,422,473,222,4114,33,25
2"2,3756,501,003,6280,755,009,1
60,3165,125,491,919,1127,04,15
2 1/2"2,8757,501,124,1280,885,8813,5
73,0190,528,4104,622,4149,46,13
3"3,508,251,255,0080,886,6218,6
88,9209,631,8127,022,3168,18,44
3 1/2"4,009,001,385,5081,007,2524,2
101,6228,635,1139,725,4184,211,0
4"4,5010,751,506,1981,008,5038,1
114,3273,138,1157,225,4215,917,3
5"5,56313,001,757,3181,1210,5064,8
141,3330,244,5185,728,4266,729,4
6"6,62514,001,888,50121,1211,5079,5
168,3355,6 47,8215,928,4292,136,1
8"8,62516,502,1910,62121,2513,75130
219,1419,1 55,6269,731,8349,358,9
10"10,7520,002,5012,75161,3817,00215
273508,063,5323,935,1431,897,5
12"12,7522,002,6215,00201,3819,25273
323,8558,866,5381,035,1489,0124
14"14,023,752,7516,25201,5020,75333
355,6603,369,9412,838,1527,1151
16"16,027,003,0018,50201,6223,75471
406,4685,876,2469,941,1603,3214
18"18,029,253,2521,00201,7525,75599
457,2743,082,6533,444,5654,1272
20"20,032,003,5023,00241,7528,50769
508812,888,9584,244,5723,9349
24"24,037,004,0027,25242,0033,001174
609,6939,8101,6692,250,8838,2533


Detalles de producto

1. Tamaño: 1/2 "-60" (DN10-DN1500)、

2. Tipos: brida de soldadura, brida del cuello de soldadura, brida ciega, brida de soldadura de zócalo, brida roscada, brida de la junta, brida de placa, cuello de soldadura larga y brida plana, etc.


3. Material:

Acero al carbono: ASTM A105/SA105N; ASTM A350 LF1; Lf2; Cl1/cl2, ct20; 16mn; rst37.2; s235jr; p245gh; p250gh; p250ghm; C22.8; Q235; 15crmo

Acero inoxidable: ASTM A182, SS303; SS304/304L; SS316/316L; F321; F347; 316ti; A182F317/317L; SS400; SF440

Acero de aleación: ASTM A182 A182 F12, F11, F22, F5, F9, F91, F51, F53, F55, F60, F44, F304H, F316H, F317H, F321H, F347H, Inconel 600,625,825, etc.


4. Grosor de la pared: SCH5, SCH10, SCH20, SCH30, STD, SCH40, XS, SCH80, SCH100, SCH120, SCH140, XXS, SCH160;


5. Tipo de conexión: cara elevada, cara plana, articulación del tipo de anillo, cara de articulación de lapsidad, gran hombre-mujer, pequeño hombre-mujer, lengua grande, ranura, pequeña lengua, ranura, etc.


6. Calificación de presión:

ANSI B16.5: CLASE 150 BOLDAS CLASS 2500 BOLDAS ;

DIN: 6BAR 10BAR 16BAR 25BAR 40BAR 63BAR

JIS: bridas de 5K-30k

EN1092-1: 6BAR 10BAR 16BAR 25BAR 40BAR 63BAR 100BAR


7. Tratamiento de la superficie: aceite anti-romelo, negro / amarillo / transparente / galvanizado eléctrico / galvanizado caliente.


8. Superficie de sellado: FF, RF, MFM, TG, FF


9. Tratamiento térmico: normalización, recocido, templado de enfriamiento.


10. Estándar:

(1) ANSI B16.5, A105 150LB / 300LB / 600LB / 900LB / 1500LB / 2500LB

(2) DIN 2573 PN6 / DIN 2576 PN10 / DIN2502 PN16 / DIN2503 P25-40 / DIN2566 PN16 / DIN2631-2635 RST37.2 o C22.8

(3) JIS SS400 o SF440 5K / 10K / 16K / 20K / 30K

(4) UNI 2276 /2277 /2278 /6084 /6089 /6090 /2544 /2282 / 6091-6093

(5) EN1092 PN6 / PN10 / PN16 / PN25 / PN40 / TIPO1 TIPO2 TIPO 5 TIPO 12 TIPO 13

(6) BS4504 SANI1123 1000/3, 1600/3, 2500/3, T/D, T/E, T/F Bida de acero al carbono

(7) AS2129 Tabla D / Tabla H / Tabla E Brida de acero al carbono

(8) GOST 12820-80 / 12821-80 Bida de acero al carbono


11. Tolerancia: según el estándar.

12. Certificación: ISO9001: 2000, API, CE

13. Paquete: paleta o estuche de madera contrachapada.

14. Tiempo de entrega: como más temprano, dentro del período requerido por el cliente.

15. Término de pago: T/T o L/C

16. Muestra: disponible

17. Precio: >> Obtenga la lista de precios más nueva (lista de precios y técnico)

pregunte ahora
