Brida

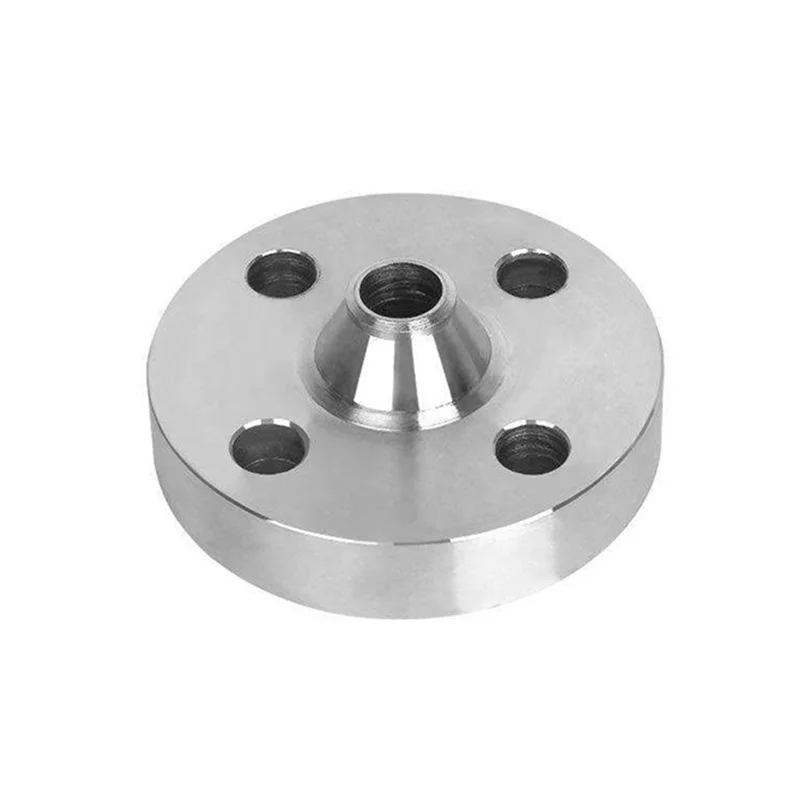

Brida de cuello de soldadura-307

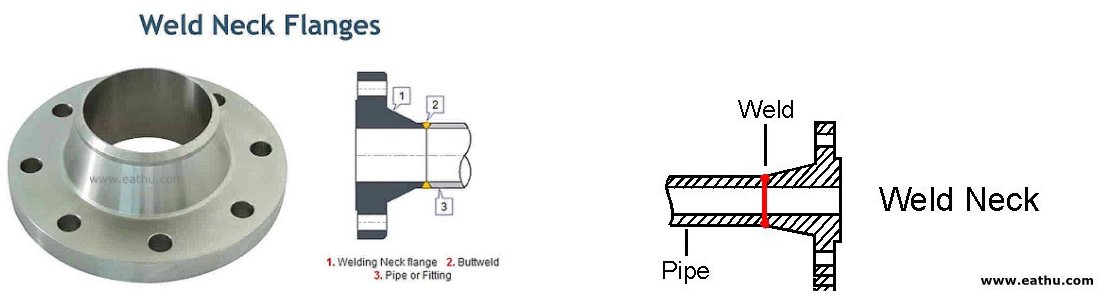

Brida de cuello de soldadura

Solicitud:

La brida del cuello de soldadura también se llama brida Wn, es una brida con un tope de cuello soldado a la tubería. La brida del cuello que se desvanece no es fácil de deformarse, bien sellada y ampliamente utilizada. La brida del cuello de soldadura es adecuada para tuberías con grandes fluctuaciones en presión o temperatura o tuberías con alta temperatura, alta presión ≤25.0MPa y baja temperatura. También se utiliza para transmitir medios caros, inflamables y explosivos en la tubería con presión nominal alrededor de PN16MPA. Las bridas de soldadura a tope son la conexión más utilizada para las válvulas de acero inoxidable. La superficie de sellado de la brida de soldadura a tope RF, FF, MF, etc.

La brida de WN no es fácil de deformarse, el sellado es bueno y el precio es relativamente barato. Es adecuado para ocasiones con alta presión, alta temperatura y gran diámetro de la tubería.

Como fabricantes de bridas del cuello de soldadura en China, Eathu también puede suministrar bridas OEM de acuerdo con los guiones o diseños de los clientes.

Bienvenido a contactarnos para obtener más información.

Especificación:


Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 150 Soldación de cuello de soldadura


PipeFlangeHubRaised FaceDrilling TemplateApprox. Weight
Norm.O DDJbhamgNumberlk≈
sizein.in.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmmmKgs
1/2"0,843,500,620,441,880,841,191,3840,622,381,1
21,388,915,711,247,821,330,235,115,760,50,71
3/4"1,053,880,820,502,061,051,501,6940,622,751,6
26,798,620,812,752,326,738,142,915,769,90,71
1"1,3154,251,050,562,191,321,942,0040,623,122,2
33,4108,026,714,255,633,549,350,815,779,21,01
1 1/4"1,664,621,380,622,251,662,312,5040,623,502,9
42,2117,335,115,757,242,258,763,515,788,91,33
1 1/2"1,905,001,610,692,441,902,562,8840,623,883,8
48,3127,040,917,562,048,365,073,215,798,61,72
2"2,3756,002,070,752,502,383,063,6240,754,755,7
60,3152,452,619,163,560,577,791,919,1120,72,58
2 1/2"2,8757,002,470,882,752,883,564,1240,755,509,1
73,0177,862,722,469,973,290,4104,619,1139,74,11
3"3,507,503,070,942,753,504,255,0040,756,0010,8
88,9190,578,028,969,688,9108,0127,019,1152,44,92
3 1/2"4,008,503,550,942,814,004,815,5080,757,0013,4
101,6215,990,228,971,4101,6122,2139,719,1177,86,08
4"4,509,004,030,943,004,505,316,1980,757,5015,1
114,3228,6102,428,976,2114,3134,9157,219,1190,56,84
5"5,56310,005,050,943,505,566,447,3180,888,5018,9
141,3254,0128,328,988,9141,2163,6185,722,4215,98,56
6"6,62511,006,071,003,506,637,568,5080,889,5023,3
168,3279,4154,225,488,9168,4192,0215,922,4241,310,6
8"8,62513,507,981,124,008,639,6910,6280,8811,7538,8
219,1342,9202,728,4101,6219,2246,1269,722,4298,517,6
10"10,7516,0010,021,194,0010,7512,0012,75121,0014,2553,0
273406,4254,530,2101,6273,1304,8323,925,4362,024,0
12"12,7519,0012,001,254,5012,7514,3815,00121,0017,0080,4
323,8482,6304,831,8114,3323,8365,3381,025,4431,836,5
14"14,021,00
1,385,0014,0015,7516,25121,1218,75107
355,6533,435,1127,0355,6400,1412,828,4476,348,4
16"16,023,50
1,445,0016,0018,0018,50161,1221,25134
406,4596,936,6127,0406,4457,2469,928,4539,860,6
18"18,025,00
1,565,5018,0019,8821,00161,2522,75151
457,2635,039,6139,7457,2505,0533,431,8577,968,3
20"20,027,50
1,695,6920,0022,0023,00201,2525,00186
508698,542,9144,5508,0558,8584,231,8635,084,5
24"24,032,00
1,886,0024,0026,1227,25201,3829,50253
609,6812,847,8152,4609,6663,4692,235,1749,3115



Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 300 Soldación de cuello de soldadura

PipeFlangeHubRaised FaceDrilling TemplateApprox. Weight
Norm.O DDJbhamgNumberlk≈
sizein.in.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmmmKgs
1/2"0,843,750,620,562,060,841,501,3840,622,621,7
21,395,215,714,252,321,338,135,015,766,50,75
3/4"1,054,620,820,622,251,051,881,6940,753,252,8
26,7117,320,815,757,126,747,742,919,082,51,26
1"1,3154,881,050,692,441,322,122,0040,753,503,5
33,4123,926,717,562,033,553,850,819,088,91,52
1 1/4"1,662,251,380,752,561,662,502,5040,883,884,5
42,2133,335,119,065,042,263,563,522,398,52,03
1 1/2"1,906,121,610,812,691,902,752,8840,754,506,4
48,3155,440,920,668,348,369,873,219,0114,32,89
2"2,3756,502,070,882,752,383,313,6280,885,007,5
60,3165,152,622,369,860,584,091,922,3127,03,40
2 1/2"2,8757,502,471,003,002,883,944,1280,885,8811,4
73,0190,562,725,476,273,2100,0104,622,3149,35,17
3"3,508,253,071,123,123,504,625,0080,886,6215,3
88,9209,578,028,479,288,9117,3127,022,3168,16,93
3 1/2"4,009,003,551,193,194,005,255,5080,887,2519,1
101,6228,690,230,281,0101,6133,3139,722,3184,18,67
4"4,5010,004,031,253,384,505,756,1980,887,8824,7
114,3254,0102,431,785,8114,3146,0157,222,3200,111,2
5"5,56311,005,051,383,885,567,007,3180,889,2533,3
141,3279,4128,335,098,5141,2177,8185,722,3234,915,1
6"6,62512,506,071,444,386,638,128,50120,8810,6242,4
168,3317,5154,236,5111,2168,4206,2215,922,3269,719,1
8"8,62515,007,981,624,628,6310,2510,62121,0013,0065,9
219,1381,0202,741,1117,3219,2260,3269,725,4330,229,9
10"10,7517,5010,021,885,1210,7512,6212,75161,1215,2594,1
273444,5254,547,7130,0273,1320,5323,928,4387,342,7
12"12,7520,5012,002,005,6212,7514,7515,00161,2517,75136
323,8520,7304,850,8142,7323,8374,6381,031,7450,861,8
14"14,023,00
2,125,7514,0016,7516,25201,2520,25189
355,6584,253,8142,7355,6425,4412,831,7514,385,8
16"16,025,50
2,255,7516,0019,0018,50201,3822,50234
406,4647,757,1146,0406,4482,6469,935,0571,5106
18"18,028,00
2,386,2518,0021,0021,00241,3824,75289
457,2711,260,4158,7457,2533,4533,435,0571,5131
20"20,030,50
2,506,3820,0023,1223,00241,3824,75348
508774,763,5162,0508,0587,2584,235,0628,6158
24"24,036,00
2,756,6224,0027,6227,25241,6232,00507
609,6914,469,8168,1609,6701,5692,241,1812,8230


Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 600 Soldación de cuello de soldadura

PipeFlangeHubRaised FaceDrilling TemplateApprox. Weight
Norm.O DDJbhamgNumberlk≈
sizein.in.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmmmKgs
1/2"0,843,75
0,562,060,841,501,3840,622,621,9
21,395,214,252,321,338,135,115,766,50,87
3/4"1,054,620,622,251,051,881,6940,753,253,2
26,7117,315,757,226,747,742,919,182,61,45
1"1,3154,880,692,441,322,122,0040,753,503,9
33,4123,917,562,033,553,850,819,188,91,76
1 1/4"1,665,250,812,621,662,502,5040,753,885,5
42,2133,315,766,542,263,563,519,198,62,49
1 1/2"1,906,120,882,751,902,752,8840,884,507,7
48,3155,422,469,948,369,873,222,4114,33,49
2"2,3756,501,002,882,383,313,6280,755,009,6
60,3165,125,473,260,584,091,919,1127,04,36
2 1/2"2,8757,501,123,122,883,944,1280,885,8814,2
73,0190,528,479,273,2100,0104,622,4149,46,43
3"3,508,251,253,253,504,625,0080,886,6218,8
88,9209,531,882,688,9117,3127,022,4168,18,53
3 1/2"4,009,001,383,384,005,255,5081,007,2523,6
101,6228,635,185,9101,6133,4139,725,4184,210,7
4"4,5010,001,504,004,506,006,1981,008,5038,3
114,3273,138,1101,6114,3152,4157,225,4215,917,4
5"5,56313,001,754,505,567,447,3181,1210,5064,3
141,3330,244,5114,3141,2189,0185,728,4266,729,2
6"6,62514,001,884,626,638,758,50121,1211,5076,9
168,3355,647,8117,3168,4222,3215,928,4292,134,9
8"8,62516,502,195,258,6310,7510,62121,2513,75119
219,1419,155,6133,4219,2273,1269,731,8349,353,9
10"10,7520,002,506,0010,7513,5012,75161,3817,00191
273508,063,5152,4273,1342,9323,935,1431,886,5
12"12,7522,002,626,1212,7515,7515,00201,3819,25227
323,8558,866,5155,4323,8400,1381,035,1489,0103
14"14,023,752,756,5014,0017,0016,25201,5020,75269
355,6603,369,9165,1355,6431,8412,838,1527,1122
16"16,027,003,007,0016,0019,5018,50201,6223,75374
406,4685,876,2177,8406,4495,3469,941,1603,3170
18"18,029,253,257,2518,0021,5021,00201,7525,75449
457,2743,082,6184,2457,2546,1533,444,5654,1204
20"20,032,003,507,5020,0024,0023,00241,7528,50560
508812,888,9190,5508,0609,6584,244,5723,9254
24"24,037,004,008,0024,0028,2527,25242,0033,00789
609,6939,8101,6203,2609,6717,6692,250,8838,2358


Dimensiones y gráficos de peso para ASME/ANSI B16.5 Clase 900 Soldación de cuello de soldadura

PipeFlangeHubRaisedDrilling TemplateApprox.
 FaceWeight
Norm.O DDJbhamgNumberlk≈
sizein.in.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmmmKgs
1/2"0,844,75specified by purchasers.0,882,380,841,501,3840,883,254,1
21,3120,622,360,421,338,135,022,382,51,87
3/4"1,055,121,002,751,051,751,6940,883,505,6
26,7130,025,469,826,744,542,922,388,92,56
1"1,325,881,122,881,322,062,0041,004,008,2
33,4149,328,473,133,452,350,825,4101,63,74
1 1/4"1,666,251,122,881,662,502,5041,004,389,5
42,2158,728,473,142,263,563,525,4111,24,33
1 1/2"1,907,001,253,251,902,752,8841,124,8813,1
48,3177,831,782,548,369,873,128,4123,95,94
2"2,388,501,504,002,384,123,6281,006,5023,8
60,3215,938,1101,660,3104,691,925,4165,110,8
2 1/2"2,889,621,624,122,884,884,1281,127,5033,0
73,0244,341,1104,673,0123,9104,628,4190,515,0
3"3,509,501,504,003,505,005,0081,007,5030,2
88,9241,338,1101,688,9127,0127,025,4190,513,7
4"4,5011,501,754,504,506,256,1981,259,2549,6
114,3292,144,4114,3114,3158,7157,231,7234,922,5
5"5,56313,752,005,005,567,507,3181,3811,0082,4
141,3349,250,8127,0141,2190,5185,635,0279,437,4
6"6,62515,002,195,506,639,258,50121,2512,50105
168,3381,055,6139,7168,4234,9215,931,7317,547,7
8"8,62518,502,506,388,6311,7510,62121,5015,50179
219,1469,963,5162,0219,2298,4269,738,1393,781,3
10"10,7521,502,757,2510,7514,5012,75161,5018,50262
273546,169,8184,1273368,3323,838,1469,9119
12"12,7524,003,127,8812,7516,5015,00201,5021,00346
323,8609,679,2200,1323,8419,1381,038,1533,4157
14"14,025,253,388,3814,0017,7516,25201,6222,00379
355,6641,385,8212,8355,6450,8412,741,1558,8180
16"16,027,753,508,5016,0020,0018,50201,7524,25478
406,4704,888,9215,9406,4508,0469,944,4615,9217
18"18,031,004,009,0018,0022,2521,00202,0027,00643
457,2787,4101,6228,6457,2565,1533,450,8685,8292
20"20,033,754,259,7520,0024,5023,00202,1229,50797
508857,2107,9247,6508622,3584,253,8749,3362
24"24,041,005,5011,5024,0029,5027,25202,6235,501465
609,61041,4139,7292,1609,6749,3692,166,5901,7665


Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 1500 Bida de cuello de soldadura

PipeFlangeHubRaisedDrilling TemplateApprox.
 FaceWeight
Norm.O DDJbhamgNumberlk≈
sizein.in.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmmmKgs
1/2"0,844,75specified by purchasers.0,882,380,841,501,3840,883,254,1
21,3120,622,360,421,338,135,022,382,51,87
3/4"1,055,121,002,751,051,751,6940,883,505,6
26,7130,025,469,826,744,542,922,388,92,56
1"1,325,881,122,881,322,062,0041,004,008,2
33,4149,328,473,133,452,350,825,4101,63,74
1 1/4"1,666,251,122,881,662,502,5041,004,389,5
42,2158,728,473,142,263,563,525,4111,24,33
1 1/2"1,907,001,253,251,902,752,8841,124,8813,1
48,3177,831,782,548,369,873,128,4123,95,94
2"2,388,501,504,002,384,123,6281,006,5023,8
60,3215,938,1101,660,3104,691,925,4165,110,8
2 1/2"2,889,621,624,122,884,884,1281,127,5033,0
73,0244,341,1104,673,0123,9104,628,4190,515,0
3"3,5010,501,884,623,505,255,0081,258,0043,8
88,9266,747,7117,388,9133,3127,031,7203,219,9
4"4,5012,252,124,884,506,386,1981,389,5065,9
114311,153,8123,9114,3162,0157,235,0241,329,9
5"5,56314,752,886,125,567,757,3181,6211,50122
141,3374,673,1155,4141,2196,8185,641,1292,155,4
6"6,62515,503,256,75 6,639,008,50121,5012,50151
168,3393,782,5171,4168,4228,6215,938,1317,568,4
8"8,62519,003,628,388,6311,5010,62121,7515,50258
219,1482,691,9212,8219,2292,1269,744,4393,7117
10"10,7523,004,2510,0010,7514,5012,75122,0019,00427
273584,2107,9254,0273368,3323,850,8482,6194
12"12,7526,504,8811,1212,7517,7515,001621,222,50634
323,8673,1123,9282,4323,8450,8381,053,8571,5288
14"14,029,505,2511,7514,0019,5016,25162,3825,00837
355,6749,3133,3298,4355,6495,3412,760,4635,0380
16"16,032,505,7512,2516,0021,7518,50162,6227,751068
406,4825,5146,0311,1406,4552,4469,966,5704,8485
18"18,036,006,3812,8818,0023,5021,00162,8830,501419
457,2914,4162,0327,1457,2596,9533,473,1774,7644
20"20,038,757,0014,0020,0025,2523,00163,1232,751707
508984,2177,8355,6508641,3584,279,2831,8775
24"24,046,008,0016,0024,0030,0027,25163,6239,002714
609,61168,4203,2406,4609,6762,0692,191,9990,61232


Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 2500 Bida de cuello de soldadura

PipeFlangeHubRaisedDrilling TemplateApprox.
 FaceWeight
Norm.O DDJbhamgNumberlk≈
sizein.in.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmmmKgs
1/2"0,845,25
1,192,880,841,691,3840,883,506,9
21,3133,430,273,221,342,935,122,488,53,12
3/4"1,055,501,253,121,052,001,6940,883,758,1
26,7139,731,879,226,750,842,922,495,33,70
1"1,3156,251,383,501,322,252,0041,004,2511,5
33,4158,835,188,933,557,250,825,4108,05,24
1 1/4"1,667,251,503,751,662,882,5041,125,1217,0
42,2184.238,195,342,273,263,528,4130,07,74
1 1/2"1,908,001,754,381,903,122,8841,255,7524,0
48,3203,244,5111,348,379,273,231,8146,110,9
2"2,3759,252,005,002,383,753,6281,126,7535,7
60,3235,050,8127,060,595,391,928,4171,516,2
2 1/2"2,87510,502,255,622,884,504,1281,257,7552,2
73,0266,757,2142,773,2114,3104,631,7196,923,7
3"3,5012,002,626,623,505,255,0081,389,0079,7
88,9304,866,5168,188,9133,4127,035,0228,636,2
4"4,5014,003,007,504,506,506,1981,6210,75122
114,3355,676,2190,5114,3165,1157,241,1273,155,3
5"5,56316,503,629,005,568,007,3181,8812,75204
141,3419,191,9228,6141,2203,2185,747,8323,992,5
6"6,62519,004,2510,756,639,258,5082,1214,50315
168,3482,6108,0273,1168,4235,0215,953,8368,3143
8"8,62521,755,0012,508,6312,0010,62122,1217,25474
219,1552,5127,0317,5219,2304,8269,753,8438,2215
10"10,7526,506,5016,5010,7514,7512,75122,6221,25894
273673,1165,1419,1273,1374,7323,966,5539,8406
12"12,7530,007,2518,2512,7517,3815,00122,8824,381260
323,8762,0184,2463,6323,9441,5381,073,2619,3572


Detalles de producto

1. Tamaño: 1/2 "-60" (DN10-DN1500)


2. Tipos: brida de soldadura, brida del cuello de soldadura, brida ciega, brida de soldadura de zócalo, brida roscada, brida de la junta, brida de placa, cuello de soldadura larga y brida plana, etc.


3. Material:

Acero al carbono: ASTM A105/SA105N; ASTM A350 LF1; Lf2; Cl1/Cl2, CT20; 16mn; RST37.2; S235Jr; P245GH; P250GH; P250GHM; C22.8; Q235; 15crmo

Acero inoxidable: ASTM A182, SS303; SS304/304L; SS316/316L; F321; F347; 316ti; A182F317/317L; SS400; SF440

Acero de aleación: ASTM A182 A182 F12, F11, F22, F5, F9, F91, F51, F53, F55, F60, F44, F304H, F316H, F317H, F321H, F347H, Inconel 600,625,825, etc


4. Grosor de la pared: SCH5, SCH10, SCH20, SCH30, STD, SCH40, XS, SCH80, SCH100, SCH120, SCH140, XXS, SCH160;


5. Tipo de conexión: cara elevada, cara plana, articulación del tipo de anillo, cara de articulación de lapsidad, gran hombre-mujer, pequeño hombre-mujer, lengua grande, ranura, pequeña lengua, ranura, etc.


6. Calificación de presión:

ANSI B16.5: CLASE 150 BOLDAS CLASS 2500 BOLDAS ；

DIN: 6BAR 10BAR 16BAR 25BAR 40BAR 63BAR

JIS: bridas de 5K-30k

EN1092-1: 6BAR 10BAR 16BAR 25BAR 40BAR 63BAR 100BAR


7. Tratamiento de la superficie: aceite anti-romelo, negro / amarillo / transparente / galvanizado eléctrico / galvanizado caliente.


8. Superficie de sellado: FF, RF, MFM, TG, FF


9. Tratamiento térmico: normalización, recocido, templado de enfriamiento.


10. Estándar:

(1) ANSI B16.5, A105 150LB / 300LB / 600LB / 900LB / 1500LB / 2500LB

(2) DIN 2573 PN6 / DIN 2576 PN10 / DIN2502 PN16 / DIN2503 P25-40 / DIN2566 PN16 / DIN2631-2635 RST37.2 o C22.8

(3) JIS SS400 o SF440 5K / 10K / 16K / 20K / 30K

(4) UNI 2276 /2277 /2278 /6084 /6089 /6090 /2544 /2282 / 6091-6093

(5) EN1092 PN6 / PN10 / PN16 / PN25 / PN40 / TIPO1 TIPO2 TIPO 5 TIPO 12 TIPO 13

(6) BS4504 SANI1123 1000/3, 1600/3, 2500/3, T/D, T/E, T/F Bida de acero al carbono

(7) AS2129 Tabla D / Tabla H / Tabla E Brida de acero al carbono

(8) GOST 12820-80 / 12821-80 Bida de acero al carbono


11. Tolerancia: según el estándar.


12. Certificación: ISO9001: 2000, API, CE


13. Paquete: paleta o estuche de madera contrachapada.


14. Tiempo de entrega: como más temprano, dentro del período requerido por el cliente.


15. Término de pago: T/T o L/C


16. Muestra: disponible


17. Precio: >> Obtenga la lista de precios más nueva (Lista de precios y técnicos)

pregunte ahora

Si tiene alguna duda o necesidad sobre el producto, por favor rellene el siguiente formulario y nos pondremos en contacto con usted lo antes posible.

0

info@eathumetals.com

+86 13336398538

0086 - 532 - 88256388

Contacta con nosotros

  • Dirección:

    Oficina de exportación: 21 Floor, No.5 Nanhai Zhi Road, Qingdao, Shandong, China

    Taller: Beian Industrial Park, Jimo Dist, Ciudad de Qingdao, provincia de Shandong, China

  • teléfono:

    0086 - 532 - 88256388

  • FAX:

    0532-88256399

  • email:

    info@eathumetals.com

productos

mensaje

© 2022 QINGDAO EATHU IMPORT AND EXPORT CO., LTD. Powered by HiCheng MAPA DEL SITIO
sobre nosotros Servicio OEM control de calidad noticias Contáctenos
