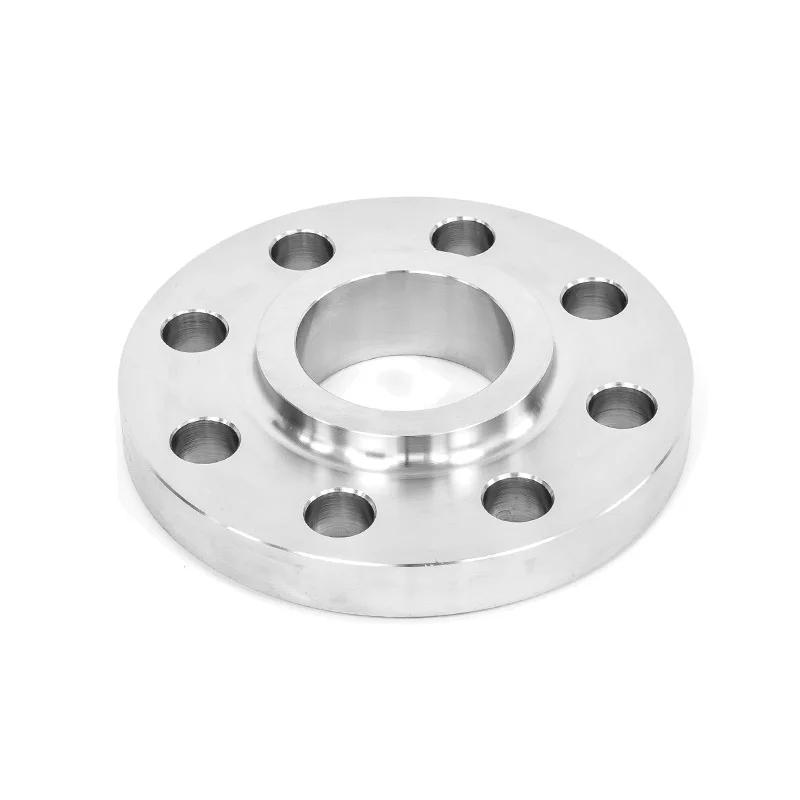

Deslizarse en la brida

Solicitud:

La brida de la tubería también se llama brida, es adecuada para la conexión de tuberías de acero al carbono con una presión nominal de no más de 2.5MPa. Slip sobre la brida utilizada principalmente para cuando las condiciones medianas son relativamente suaves, como el aire comprimido no purificado de baja presión y el agua circulante de baja presión. Las bridas resbaladas colocan dos filetes soldadura, deslizándose dentro del tubo. Por lo tanto, su costo de instalación es más bajo, lo que requiere menos precisión para cortar la tubería.

A medida que los fabricantes de brida de resbalón en China, Eathu puede suministrar un deslizamiento de acero de carbono sobre brida y acero inoxidable sobre brida. Rango de tamaño: de 1/2 "a 24"; presión: 150 lbs, 300 lbs, 600 lbs, 900 lbs, 1500 lbs, 2000lbs, 3000 libras, 6000 libras, 9000 lbs; tratamiento de superficie: aceite anti-romelo, galvanizado negro / amarillo / eléctrico / galvanizado caliente.

Eathu también puede suministrar bridas OEM de acuerdo con los dibujos o diseños de los clientes.

Bienvenido a contactarnos para obtener más información.

Especificación:

Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 150 Slip on brida

PipeFlangeHubRaised FaceDrilling TemplateApprox. Weight
Nom.O DDJbhmgNumberlk≈
sizein.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmKgs
1/2"0,843,500,880,440,621,191,3840,622,380,9
21,388,922,411,215,730,235,115,760,50,39
3/4"1,053,881,090,500,621,501,6940,622,751,2
26,798,627,712,715,738,142,915,769,90,56
1"1,3154,251,360,560,691,942,0040,623,121,7
33,4108,034,514,217,549,350,815,779,20,78
1 1/4"1,664,621,700,620,812,312,5040,623,502,3
42,2117,343,215,720,658,763,515,788,91,03
1 1/2"1,905,001,950,690,882,562,8840,623,882,9
48,3127,049,517,522,465,073,215,798,61,32
2"2,3756,002,440,751,003,063,6240,754,754,5
60,3152,462,019,125,477,791,919,1120,72,06
2 1/2"2,8757,002,940,881,123,564,1240,755,507,2
73,0177,874,722,428,490,4104,619,1139,73,28
3"3,507,503,570,941,194,255,0040,756,008,5
88,9190,590,723,930,2108,0127,019,1152,43,85
3 1/2"4,008,504,070,941,254,815,5080,757,0010,6
101,6215,9103,423,931,8122,2139,719,1177,84,81
4"4,509,004,570,941,315,316,1980,757,5011,7
114,3228,6116,123,933,3134,9157,219,1190,55,30
5"5,56310,005,660,941,446,447,3180,888,5013,4
141,3254,0143,823,936,6163,6185,722,4215,96,07
6"6,62511,006,721,001,567,568,5080,889,5016,4
168,3279,4170,725,439,6192,0215,922,4241,37,45
8"8,62513,508,721,121,759,6910,6280,8811,7526,7
219,1342,9221,528,444,5246,1269,722,4298,512,1
10"10,7516,0010,881,191,9412,0012,75121,0014,2536,3
273406,4276,430,249,3304,8323,925,4362,016,5
12"12,7519,0012,881,252,1914,3815,00121,0017,0057,7
323,8482,6327,231,855,6365,3381,025,4431,826,2
14"14,021,0014,141,382,2515,7516,25121,1218,7576,2
355,6533,4359,235,157,2400,1412,828,4476,334,6
16"16,023,5016,161,442,5018,0018,50161,1221,2598,7
406,4596,9410,5 36,663,5457,2469,928,4539,844,8
18"18,025,0018,181,562,6919,8821,00161,2522,75108
457,2635,0461,839,668,3505,0533,431,8577,948,9
20"20,027,5020,201,692,8822,0023,00201,2525,00136
508698,5513,142,973,2558,8584,231,8635,061,9
24"24,032,0024,251,883,2526,1227,25201,3829,50191
609,6812,8616,047,882,6663,4692,235,1749,386,9



Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 300 Slip on brida

PipeFlangeHubRaised FaceDrilling TemplateApprox. Weight
Nom.O DDJbhmgNumberlk≈
sizein.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmKilo
1/2"0,843,750,880,560,881,501,3840,622,621,4
21,395,222,314,222,338,135,015,756,50,64
3/4"1,054,6210,90,621,001,881,6940,753,253,5
26,7117,327,715,725,447,742,919,082,51,12
1"1,3154,881,360,691,062,122,0040,753,503,0
33,4123,934,517,526,953,850,819,088,91,36
1 1/4"1,665,251,700,751,062,502,5040,753,883,7
42,2133,343,219,026,963,563,519,098,51,68
1 1/2"1,906,121,950,811,192,752,8840,884,505,5
48,3155,449,520,630,269,873,122,3114,32,49
2"2,3756,502,440,881,313,313,6280,755,006,3
60,3165,162,022,333,284,091,919,0127,02,87
2 1/2"2,8757,502,941,001,503,944,1280,885,389,5
73,0190,574,725,438,1100,0104,622,3149,34,32
3"3,508,253,571,121,694,625,0080,886,6212,9
88,9209,590,728,442,9117,3127,022,3168,15,85
3 1/2"4,009,004,071,191,755,255,5080,887,2516,2
101,6228,6103,430,244,4133,3139,722,3184,17,34
4"4,5010,004,571,251,885,756,1980,887,8821,2
114,3254,0116,131,747,7146,0157,222,3200,19,61
5"5,56311,005,661,382,007,007,3180,889,2527,1
141,3279,4143,835,050,8177,8185,622,3234,912,3
6"6,62512,506,721,442,068,128,50120,8810,6234,4
168,3317,5170,736,552,3206,2215,922,3269,715,6
8"8,62515,008,721,622,4410,2510,62121,0013,0053,3
219,1381,0221,541,161,9260,3269,725,4330,224,4
10"10,7517,5010,881,882,6212,6212,75161,1215,2575,1
273444,5276,347,766,5320,5323,828,4387,334,1
12"12,7520,5012,882,002,0014,7615,00161,2517,75110
323,8520,7327,150,850,8375,0381,031,7450,849,7
14"14,023,0014,142,123,0016,7516,25201,2520,25154
355,6584,2359,153,876,2425,4412,731,7514,369,9
16"16,025,5016,162,253,2519,0018,50201,3822,50194
406,4647,7410,557,182,5482,6469,935,0571,588,1
18"18,028,0018,182,383,5021,0021,00241,3824,75240
457,2711,2461,860,488,9533,4533,435,0628,6109
20"20,030,5020,202,503,7523,1223,00241,3827,00295
508774,7513,163,595,2587,2584,235,0685,8134
24"24,036,0024,252,754,1927,6227,25241,6232,00443
609,6914,4615,969,8106,4701,5692,241,1812,8201



Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 400 Slip on brida

PipeFlangeHubRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDJbhmgNumberlk≈
sizein.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmKgs
1/2"0,84use 600lb dimensions for these sizes
21,3
3/4"1,05
26,7
1"1,315
33,4
1 1/4"1,66
42,2
1 1/2"1,90
48,3
2"2,375
60,3
2 1/2"2,875
73,0
3"3,50
88,9
3 1/2"4,00
101,6
4"4,5010,004,571,382,005,756,1981,007,8824,4
114,3254,0116,135,150,8146,1157,225,4200,211,1
5"5,56311,005,661,502,127,007,3181,009,2530,6
141,3279,4143,838,153,8177,8185,725,4235,013,9
6"6,62512,506,721,622,258,128,50121,0010,6240,3
168,3317,5170,741,157,2206,2215,925,4269,718,3
8"8,62515,008,721,882,6910,2510,62121,1213,0063,0
219,1381,0221,547,868,3260,4269,728,4330,228,6
10"10,7517,5010,882,122,8812,6212,75161,2515,2586,3
273444,5276,453,873,2320,5323,931,8387,439,2
12"12,7520,5012,882,253,1214,7515,00161,3817,75126
323,8520,7327,257,279,2374,7381,035,1450,957,0
14"14,023,0014,142,383,3116,7516,25201,3820,25174
355,6584,2359,260,584,1425,5412,735,1514,479,1
16"16,025,5016,162,503,6919,0018,50201,5022,50223
406,4647,7410,563,593,7482,6469,938,1571,5101
18"18,028,0018,182,623,8821,0021,00241,5024,75271
457,2711,2461,866,598,6533,4533,438,1628,7123
20"20,030,5020,202,754,0023,1223,00241,6227,00322
508774,7513,169,9101,6587,2584,241,1685,8146
24"24,036,0024,253,004,5027,6227,25241,8832,00482
609,6914,4616,076,2114,3701,5692,247,8812,8219



Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 600 Slip on brida

PipeFlangeHubRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDJbhmgNumberlk≈
sizein.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmKilo
1/2"0,843,750,880,560,881,501,3840,622,621,6
21,395,322,414,222,438,135,115,766,50,74
3/4"1,054,6210,90,621,001,881,6940,753,252,8
26,7117,327,715,725,447,742,919,182,61,27
1"1,3154,881,360,691,062,122,0040,753,503,3
33,4124,034,517,526,953,850,819,188,91,52
1 1/4"1,665,251,700,811,122,502,5040,753,884,5
42,2133,443,220,628,463,563,519,198,62,03
1 1/2"1,906,121,950,881,252,752,8840,884,506,5
48,3155,449,522,431,869,973,222,4114,32,96
2"2,3756,502,441,001,443,313,6280,755,008,0
60,3165,162,025,436,684,191,919,1127,03,62
2 1/2"2,8757,502,941,121,623,944,1280,885,8811,6
73,0190,574,728,441,1100,1104,622,4149,45,28
3"3,508,253,571,251,814,625,0080,886,6215,4
88,9209,690,731,846,0117,3127,022,4168,17,00
3 1/2"4,009,004,071,381,945,255,5081,007,2519,5
101,6228,6103,435,149,3133,4139,725,4184,28,84
4"4,5010,754,571,502,126,006,1981,008,5031,9
114,3273,1116,138,153,8152,4157,225,4215,914,5
5"5,56313,005,661,752,387,447,3181,1210,5053,7
141,3330,2143,844,560,5189,0185,728,4266,724,4
6"6,62514,006,721,882,628,758,50121,1211,5063,2
168,3355,6170,747,866,5222,3215,928,4292,128,7
8"8,62516,508,7221,93,0010,7510,62121,2513,7595,6
219,1419,1221,555,676,2273,1269,731,8349,343,4
10"10,7520,0010,882,503,3813,5012,75161,3817,00155
273508,0276,463,585,9342,9323,935,1431,870,3
12"12,7522,0012,8826,23,6215,7515,00201,3819,25186
323,8558,8327,266,591,9400,1381,035,1489,084,2
14"14,023,7514,142,753,6917,0016,25201,5020,75217
355,6603,3359,269,993,7431,8412,838,1527,198,7
16"16,027,0016,163,004,1919,5018,50201,6223,75313
406,4685,8410,576,2106,4495,3469,941,1603,3142
18"18,029,2518,183,254,6221,5021,00201,7525,75381
457,2743,0461,882,6117,3546,1533,444,5654,1173
20"20,032,0020,203,505,0024,0023,00241,7528,50485
508812,8513,188,9127,0609,6584,244,5723,9220
24"24,037,0024,254,005,5028,2527,25242,0033,00687
609,6939,8616,0101,6139,7717,6692,250,8838,2312



Dimensions and Weight Chart for ASME/ANSI B16.5 Class 900 Slip On Flange

PipeFlangeHubRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDJbhmgNumberlk≈
sizein.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmKgs
1/2"0,84Use 1500 lb dimensions for these sizes
21,3
3/4"1,05
26,7
1"1,315
33,4
1 1/4"1,66
42,2
1 1/2"1,90
48,3
2"2,375
60,3
2 1/2"2,875
73,0
3"3,509,503,571,502,125,005,0081,007,5025,6
88,9241,390,738,153,8127,0127,025,4190,511,6
4"4,5011,504,572,002,756,256,1981,259,2543,4
114,3292,1116,150,869,8158,7157,231,7234,919,7
5"5,56313,755,662,193,127,507,3181,3811,0070,3
141,3349,2143,855,679,2190,5185,735,0279,431,9
6"6,62515,006,722,503,389,258,50121,2512,5090,5
168,3381,0170,763,585,8234,9215,931,7317,541,1
8"8,62518,508,722,754,0011,7510,62121,5015,50156
219,1469,9221,569,8101,6298,4269,738,1393,770,7
10"10,7521,5010,883,124,2514,5012,75161,5018,50223
273546,1276,379,2107,9368,3323,938,1469,9101
12"12,7524,0012,883,384,6216,5015,00201,5021,00293
323,8609,6327,285,8117,3491,1381,038,1533,4133
14"14,025,2514,143,505,1217,7516,25201,6222,00337
355,6641,40359,188,9130,0450,8412,841,1558,8153
16"16,027,7516,161,445,2520,0018,50201,7524,25408
406,4704,8410,536,6133,3508,0469,944,4615,9185
18"18,031,0018,181,566,0022,2521,00202,0027,00568
457,2787,4461,839,6152,4565,1533,450,8685,8258
20"20,033,7520,201,696,2524,5023,00202,1225,50698
508857,2513,142,9158,7622,3584,253,8749,3317
24"24,041,0024,251,888,0029,5027,25202,6235,501335
609,61041,4615,947,8203,2749,3692,266,5901,7606


Dimensions and Weight Chart for ASME/ANSI B16.5 Class1500 Slip On Flange

PipeFlangeHubRaised  FaceDrilling TemplateApprox. Weight
Norm.O DDJbhmgNumberlk≈
sizein.in.in.in.in.in.in.in.in.Pounds

mmmmmmmmmmmmmmmmmmKgs
1/2"0,844,750,880,881,251,501,3840,883,253,8
21,3120,622,322,331,738,135,022,382,51,74
3/4"1,055,121,091,001,381,751,6940,883,505,2
26,7130,027,725,435,044,442,922,388,92,34
1"1,3155,881,361,121,622,062,0041,004,007,6
33,4149,334,528,441,152,350,825,4101,33,44
1 1/4"1,666,251,701,121,622,502,5041,004,388,6
42,2158,743,228,441,163,563,525,4111,23,91
1 1/2"1,907,001,951,251,752,752,8841,124,8811,8
48,3177,849,531,744,569,873,128,4123,95,36
2"2,3758,502,441,502,254,123,6281,006,5021,7
60,3215,962,038,157,1104,691,925,4165,19,85
2 1/2"2,8759,622,941,622,504,884,1281,127,5030,2
73,0244,374,741,163,5123,9104,628,4190,513,7


Detalles de producto

1. Tamaño: 1/2 "-60" (DN10-DN1500)

2. Tipos: brida de soldadura, brida del cuello de soldadura, brida ciega, brida de soldadura de zócalo, brida roscada, brida de la junta, brida de placa, cuello de soldadura larga y brida plana, etc.

3. Material:

Acero al carbono: ASTM A105/SA105N; ASTM A350 LF1; Lf2; Cl1/Cl2, CT20; 16mn; RST37.2; S235Jr; P245GH; P250GH; P250GHM; C22.8; Q235; 15crmo

Acero inoxidable: ASTM A182, SS303; SS304/304L; SS316/316L; F321; F347; 316ti; A182F317/317L; SS400; SF440

Acero de aleación: ASTM A182 A182 F12, F11, F22, F5, F9, F91, F51, F53, F55, F60, F44, F304H, F316H, F317H, F321H, F347H, Inconel 600,625,825, etc.

4. Grosor de la pared: SCH5, SCH10, SCH20, SCH30, STD, SCH40, XS, SCH80, SCH100, SCH120, SCH140, XXS, SCH160;

5. Tipo de conexión: cara elevada, cara plana, articulación del tipo de anillo, cara de articulación de lapsidad, gran hombre-mujer, pequeño hombre-mujer, lengua grande, ranura, pequeña lengua, ranura, etc.

6. Calificación de presión:

ANSI B16.5: CLASE 150 BOLDAS CLASS 2500 BOLDAS ；

DIN: 6BAR 10BAR 16BAR 25BAR 40BAR 63BAR

JIS: bridas de 5K-30k

EN1092-1: 6BAR 10BAR 16BAR 25BAR 40BAR 63BAR 100BAR


7. Tratamiento de la superficie: aceite anti-romelo, negro / amarillo / transparente / galvanizado eléctrico / galvanizado caliente.

8. Superficie de sellado: FF, RF, MFM, TG, FF

9. Tratamiento térmico: normalización, recocido, templado de enfriamiento.

10. Estándar:

(1) ANSI B16.5, A105 150LB / 300LB / 600LB / 900LB / 1500LB / 2500LB

(2) DIN 2573 PN6 / DIN 2576 PN10 / DIN2502 PN16 / DIN2503 P25-40 / DIN2566 PN16 / DIN2631-2635 RST37.2 o C22.8

(3) JIS SS400 o SF440 5K / 10K / 16K / 20K / 30K

(4) UNI 2276 /2277 /2278 /6084 /6089 /6090 /2544 /2282 / 6091-6093

(5) EN1092 PN6 / PN10 / PN16 / PN25 / PN40 / TIPO1 TIPO2 TIPO 5 TIPO 12 TIPO 13

(6) BS4504 SANI1123 1000/3, 1600/3, 2500/3, T/D, T/E, T/F Bida de acero al carbono

(7) AS2129 Tabla D / Tabla H / Tabla E Brida de acero al carbono

(8) GOST 12820-80 / 12821-80 Bida de acero al carbono

11. Tolerancia: según el estándar.

12. Certificación: ISO9001: 2000, API, CE

13. Paquete: paleta o estuche de madera contrachapada.

14. Tiempo de entrega: como más temprano, dentro del período requerido por el cliente

15. Término de pag: T/T o L/C

16. Muestra: disponibl

17. Precio: >> Obtenga la lista de precios más nueva (Lista de precios y técnicos)

pregunte ahora

Si tiene alguna duda o necesidad sobre el producto, por favor rellene el siguiente formulario y nos pondremos en contacto con usted lo antes posible.

0

info@eathumetals.com

+86 13336398538

0086 - 532 - 88256388

Contacta con nosotros

  • Dirección:

    Oficina de exportación: 21 Floor, No.5 Nanhai Zhi Road, Qingdao, Shandong, China

    Taller: Beian Industrial Park, Jimo Dist, Ciudad de Qingdao, provincia de Shandong, China

  • teléfono:

    0086 - 532 - 88256388

  • FAX:

    0532-88256399

  • email:

    info@eathumetals.com

productos

mensaje

© 2022 QINGDAO EATHU IMPORT AND EXPORT CO., LTD. Powered by HiCheng MAPA DEL SITIO
sobre nosotros Servicio OEM control de calidad noticias Contáctenos
