Brida
Especificación:

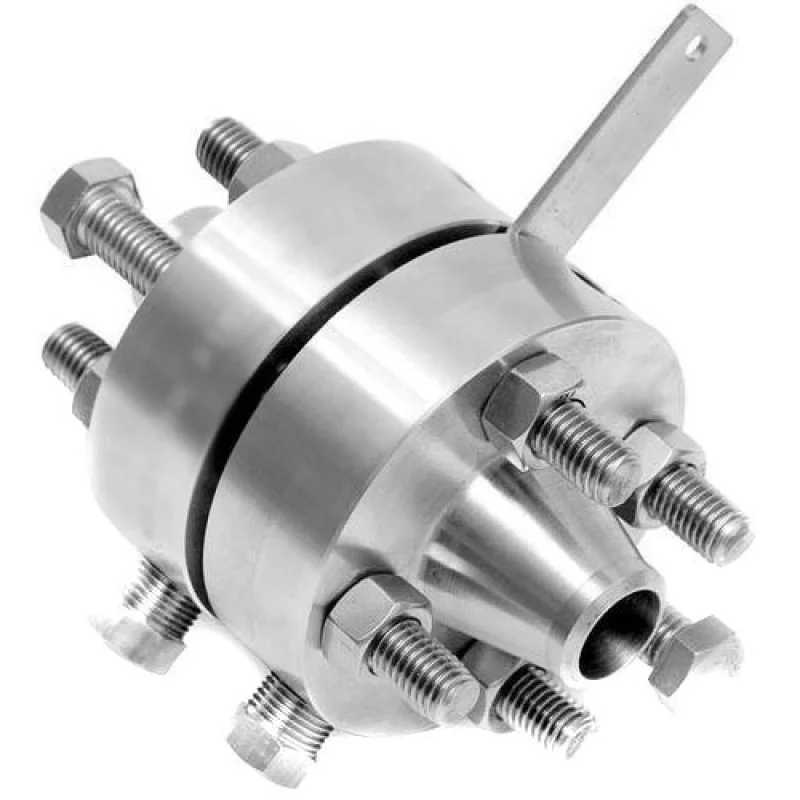

Brida de orificio
| NPS | A | R | O | T | H | X | Tg |
| 1 | 33.4 | 50.8 | 125 | 36.6 | 81 | 54 | 6.4 |
| 1½ | 48.3 | 73 | 155 | 36.6 | 84 | 70 | 6.4 |
| 2 | 60.3 | 92.1 | 165 | 36.6 | 84 | 84 | 6.4 |
| 2½ | 73 | 104.8 | 190 | 36.6 | 87 | 100 | 6.4 |
| 3 | 88.9 | 127 | 210 | 36.6 | 87 | 117 | 9.5 |
| 4 | 114.3 | 157.2 | 255 | 36.6 | 90 | 146 | 12.7 |
| 6 | 168.3 | 215.9 | 320 | 36.6 | 98 | 206 | 12.7 |
| 8 | 219.1 | 269.9 | 380 | 39.7 | 110 | 260 | 12.7 |
| 10 | 273 | 323.8 | 445 | 46.1 | 116 | 321 | 12.7 |
| 12 | 323.8 | 381 | 520 | 49.3 | 129 | 375 | 12.7 |
| 14 | 355.6 | 412.8 | 585 | 52.4 | 141 | 425 | 12.7 |
| 16 | 406.4 | 469.9 | 650 | 55.6 | 144 | 483 | 12.7 |
| 18 | 457 | 533.4 | 710 | 58.8 | 157 | 533 | 12.7 |
| 20 | 508 | 584.2 | 775 | 62 | 160 | 587 | 12.7 |
| 24 | 610 | 692.2 | 915 | 68.3 | 167 | 702 | 12.7 |
| NPS | Bolt Diameter | # Bolts | Bolt holes diameter | Bolts Diameter | Bolts length mm. |
| 1 | 88.9 | 4 | 11/16" | 5/8" | 125 |
| 1½ | 114.3 | 4 | 11/16" | 3/4" | 135 |
| 2 | 127 | 8 | 11/16" | 5/8" | 125 |
| 2½ | 149.2 | 8 | 13/16" | 3/4" | 135 |
| 3 | 168.3 | 8 | 13/16" | 3/4" | 135 |
| 4 | 200 | 8 | 13/16" | 3/4" | 135 |
| 6 | 269.9 | 12 | 7/8" | 3/4" | 135 |
| 8 | 330.2 | 12 | 1" | 7/8" | 145 |
| 10 | 387.4 | 16 | 1-1/8" | 1" | 165 |
| 12 | 450.8 | 16 | 1-1/4" | 1-1/8" | 180 |
| 14 | 514.4 | 20 | 1-1/4" | 1-1/8" | 185 |
| 16 | 571.5 | 20 | 1-3/8" | 1-1/4" | 195 |
| 18 | 628.6 | 24 | 1-3/8" | 1-1/4" | 205 |
| 20 | 685.8 | 24 | 1-3/8" | 1-1/4" | 215 |
| 24 | 812.8 | 24 | 1-3/8" | 1-1/2" | 240 |
Comentarios: Altura de la cara elevada (RF) en la clase 300 es de 2 mm
Orificio Dimensiones de brida del cuello de soldadura RF, Clase 600
| NPS | A | R | O | T | H | X | Tg |
| 1 | 33.5 | 50.8 | 125 | 36.6 | 81 | 54 | 6.4 |
| 1½ | 48.3 | 73 | 155 | 36.6 | 84 | 70 | 6.4 |
| 2 | 60.3 | 92.1 | 165 | 36.6 | 84 | 84 | 6.4 |
| 2½ | 73 | 104.8 | 190 | 36.6 | 87 | 100 | 6.4 |
| 3 | 88.9 | 127 | 210 | 36.6 | 87 | 117 | 9.5 |
| 4 | 114.3 | 157.2 | 275 | 38.1 | 102 | 152 | 12.7 |
| 6 | 168.3 | 215.9 | 355 | 47.7 | 117 | 222 | 12.7 |
| 8 | 219.1 | 269.9 | 420 | 55.6 | 133 | 273 | 12.7 |
| 10 | 273 | 323.8 | 510 | 63.5 | 152 | 343 | 12.7 |
| 12 | 323.8 | 381 | 560 | 66.7 | 156 | 400 | 12.7 |
| 14 | 355.6 | 412.8 | 605 | 69.9 | 165 | 432 | 12.7 |
| 16 | 406.4 | 469.9 | 685 | 76.2 | 178 | 495 | 12.7 |
| 18 | 457.2 | 533.4 | 745 | 82.6 | 184 | 546 | 12.7 |
| 20 | 508 | 584.2 | 815 | 88.9 | 190 | 610 | 12.7 |
| 24 | 609.6 | 692.2 | 940 | 101.6 | 203 | 718 | 12.7 |
| NPS | BOLT CIRCLE DIAM. | BOLTS # | HOLES DIAM. | BOLTS DIAMETER | BOLTS LENGTH |
| 1 | 88.9 | 4 | 11/16" | 5/8" | 125 |
| 1½ | 114.3 | 4 | 13/16" | 3/4" | 135 |
| 2 | 127 | 8 | 11/16" | 5/8" | 125 |
| 2½ | 149.2 | 8 | 13/16" | 3/4" | 135 |
| 3 | 168.3 | 8 | 13/16" | 3/4" | 135 |
| 4 | 215.9 | 8 | 1" | 7/8" | 150 |
| 6 | 292.1 | 12 | 1-1/8" | 1" | 180 |
| 8 | 349.2 | 12 | 1-1/4" | 1-1/8" | 195 |
| 10 | 431.8 | 16 | 1-3/8" | 1-1/4" | 220 |
| 12 | 489 | 20 | 1-3/8" | 1-1/4" | 230 |
| 14 | 527 | 20 | 1-1/2" | 1-3/8" | 240 |
| 16 | 603.2 | 20 | 1-5/8" | 1-1/2" | 260 |
| 18 | 654 | 20 | 1-3/4" | 1-5/8" | 280 |
| 20 | 723.9 | 24 | 1-3/4" | 1-5/8" | 300 |
| 24 | 838.2 | 24 | 2" | 1-5/8" | 335 |
Comentarios: La altura de la cara elevada (RF) en la clase 600 es de 2 mm en NPS 1 - NP 3 y 7 mm en NPS 4 - NP 24.
Orificio Dimensiones de brida del cuello de soldadura RF, Clase 900
| NPS | R | O | T | H | X | A | Tg |
| 1 | 50.8 | 125 | 36.6 | 81 | 54 | 33.5 | 6.4 |
| 1½ | 73 | 155 | 36.6 | 84 | 70 | 48.3 | 6.4 |
| 2 | 92.1 | 165 | 36.6 | 84 | 84 | 60.3 | 6.4 |
| 2½ | 104.8 | 190 | 36.6 | 87 | 100 | 73 | 6.4 |
| 3 | 127 | 240 | 38.1 | 102 | 127 | 88.9 | 9.5 |
| 4 | 157.2 | 290 | 44.5 | 114 | 159 | 114.3 | 12.7 |
| 6 | 215.9 | 380 | 55.6 | 140 | 235 | 168.3 | 12.7 |
| 8 | 269.9 | 470 | 63.5 | 162 | 298 | 219.1 | 12.7 |
| 10 | 323.8 | 545 | 69.9 | 184 | 368 | 273 | 12.7 |
| 12 | 381 | 610 | 79.4 | 200 | 419 | 323.8 | 12.7 |
| 14 | 412.8 | 640 | 85.8 | 213 | 451 | 355.6 | 12.7 |
| 16 | 469.9 | 705 | 88.9 | 216 | 508 | 406.4 | 12.7 |
| 18 | 533.4 | 785 | 101.6 | 229 | 565 | 457.2 | 12.7 |
| 20 | 584.2 | 855 | 108 | 248 | 622 | 508 | 12.7 |
| 24 | 692.2 | 1040 | 139.7 | 292 | 749 | 609.6 | 12.7 |
| NPS | BOLT CIRCLE DIAM. | BOLTS # | HOLES DIAM. | BOLTS DIAMETER | BOLTS LENGTH |
| 1 | 88.9 | 4 | 11/16" | 5/8" | 125 |
| 1½ | 114.3 | 4 | 13/16" | 3/4" | 135 |
| 2 | 127 | 8 | 11/16" | 5/8" | 125 |
| 2½ | 149.2 | 8 | 13/16" | 3/4" | 135 |
| 3 | 190.5 | 8 | 1" | 7/8" | 150 |
| 4 | 235 | 8 | 1-1/4" | 1-1/8" | 180 |
| 6 | 317.5 | 12 | 1-1/4" | 1-1/8" | 195 |
| 8 | 393.7 | 12 | 1-1/2" | 1-3/8" | 230 |
| 10 | 469.9 | 16 | 1-1/2" | 1-3/8" | 240 |
| 12 | 533.4 | 20 | 1-1/2" | 1-3/8" | 260 |
| 14 | 558.8 | 20 | 1-5/8" | 1-1/2" | 280 |
| 16 | 616 | 20 | 1-3/4" | 1-5/8" | 290 |
| 18 | 685.8 | 20 | 2" | 1-7/8" | 330 |
| 20 | 749.3 | 20 | 2-1/8" | 2 | 355 |
| 24 | 901.7 | 20 | 2-1/8" | 2-1/2" | 445 |
| Comentarios: La altura de la cara elevada (RF) en la clase 900 es de 7 mm. | |||||
Orificio Dimensiones de brida del cuello de soldadura RF, Clase 1500
| NPS | R | O | T | H | X | A | Tg |
| 1 | 50.8 | 150 | 38.1 | 83 | 52 | 33.5 | 6.4 |
| 1½ | 73 | 180 | 38.1 | 89 | 70 | 48.3 | 6.4 |
| 2 | 92.1 | 215 | 38.1 | 102 | 105 | 60.3 | 6.4 |
| 2½ | 104.8 | 245 | 41.3 | 105 | 124 | 73 | 6.4 |
| 3 | 127 | 265 | 47.7 | 117 | 133 | 88.9 | 9.5 |
| 4 | 157.2 | 310 | 54 | 124 | 162 | 114.3 | 12.7 |
| 6 | 215.9 | 395 | 82.6 | 171 | 229 | 168.3 | 12.7 |
| 8 | 269.9 | 485 | 92.1 | 213 | 292 | 219.1 | 12.7 |
| 10 | 323.8 | 585 | 108 | 254 | 368 | 273 | 12.7 |
| 12 | 381 | 675 | 123.9 | 283 | 451 | 323.8 | 12.7 |
| 14 | 412.8 | 750 | 133.4 | 298 | 495 | 355.6 | 12.7 |
| 16 | 469.9 | 825 | 146.1 | 311 | 552 | 406.4 | 12.7 |
| 18 | 533.4 | 915 | 162 | 327 | 597 | 457.2 | 12.7 |
| 20 | 584.2 | 985 | 177.8 | 356 | 641 | 508 | 12.7 |
| 24 | 692.2 | 1170 | 203.2 | 406 | 762 | 609.6 | 12.7 |
| NPS | BOLT CIRCLE DIAM. | BOLTS # | HOLES DIAM. | BOLTS DIAMETER | BOLTS LENGTH |
| 1 | 101.6 | 4 | 1" | 7/8" | 150 |
| 1½ | 123.8 | 4 | 1-1/8" | 1-1/4" | 160 |
| 2 | 165.1 | 8 | 1" | 7/8" | 150 |
| 2½ | 190.5 | 8 | 1-1/8" | 1" | 165 |
| 3 | 203.2 | 8 | 1-1/4" | 1-1/8" | 185 |
| 4 | 241.3 | 8 | 1-3/8" | 1-3/8" | 205 |
| 6 | 317.5 | 12 | 1-1/2" | 1-3/8" | 265 |
| 8 | 393.7 | 12 | 1-3/4" | 1-5/8" | 300 |
| 10 | 482.6 | 12 | 2" | 1-7/8" | 345 |
| 12 | 571.6 | 16 | 2-1/8" | 2" | 380 |
| 14 | 635 | 16 | 2-3/8" | 2-1/4" | 415 |
| 16 | 704.8 | 16 | 2-5/8" | 2-1/2" | 450 |
| 18 | 774.7 | 16 | 2-7/8" | 2-3/4" | 500 |
| 20 | 831.8 | 16 | 3-1/8" | 3" | 545 |
| 24 | 990.6 | 16 | 3-5/8" | 3-1/2" | 620 |
Comentarios: Altura de la cara elevada (RF) en la clase 1500 es de 7 mm
Orificio Dimensiones de brida del cuello de soldadura RF, Clase 2500
| NPS | R | O | T | H | X | A | Tg |
| 1 | 50.8 | 160 | 38.1 | 92 | 57 | 33.5 | 6.4 |
| 1½ | 73 | 205 | 44.5 | 111 | 79 | 48.3 | 6.4 |
| 2 | 92.1 | 235 | 50.8 | 127 | 95 | 60.3 | 6.4 |
| 2½ | 104.8 | 265 | 57.2 | 143 | 114 | 73 | 6.4 |
| 3 | 127 | 305 | 66.7 | 168 | 133 | 88.9 | 9.5 |
| 4 | 157.2 | 355 | 76.2 | 190 | 165 | 114.3 | 12.7 |
| 6 | 215.9 | 485 | 108 | 273 | 235 | 168.3 | 12.7 |
| 8 | 269.9 | 550 | 127 | 318 | 305 | 219.1 | 12.7 |
| 10 | 323.8 | 675 | 165.1 | 419 | 375 | 273 | 12.7 |
| 12 | 381 | 760 | 184.2 | 464 | 441 | 323.8 | 12.7 |
| NPS | BOLT CIRCLE DIAM. | BOLTS # | HOLES DIAM. | BOLTS DIAMETER | BOLTS LENGTH |
| 1 | 108 | 4 | 1" | 7/8" | 150 |
| 1½ | 146 | 4 | 1-1/4" | 1-1/8" | 180 |
| 2 | 171.4 | 8 | 1-1/8" | 1" | 185 |
| 2½ | 196.8 | 8 | 1-1/4" | 1-1/8" | 205 |
| 3 | 228.6 | 8 | 1-3/8" | 1-1/4" | 230 |
| 4 | 273 | 8 | 1-5/8" | 1-1/2" | 260 |
| 6 | 368.3 | 8 | 2-1/8" | 2" | 350 |
| 8 | 438.2 | 12 | 2-1/8" | 2" | 385 |
| 10 | 539.8 | 12 | 2-5/8" | 2-1/2" | 490 |
| 12 | 619.1 | 12 | 2-7/8" | 2-3/4" | 540 |
| Comentarios: La altura de la cara elevada (RF) en la clase 2500 es de 7 mm. | |||||
Orificio Dimensiones de brida del cuello de soldadura RTJ, Clase 600
| NPS | O | T | H | GROOVE # | P | E |
| 1 | 125 | 36.6 | 81 | R16 | 50.8 | 6.35 |
| 1½ | 155 | 36.6 | 84 | R20 | 68.27 | 6.35 |
| 2 | 165 | 36.6 | 84 | R23 | 82.55 | 7.92 |
| 2½ | 190 | 36.6 | 87 | R26 | 101.6 | 7.92 |
| 3 | 210 | 36.6 | 87 | R31 | 123.83 | 7.92 |
| 4 | 275 | 38.1 | 102 | R37 | 149.23 | 7.92 |
| 6 | 355 | 47.7 | 117 | R45 | 211.12 | 7.92 |
| 8 | 420 | 55.6 | 133 | R49 | 269.88 | 7.92 |
| 10 | 510 | 63.5 | 152 | R53 | 323.85 | 7.92 |
| 12 | 560 | 66.7 | 156 | R57 | 381 | 7.92 |
| 14 | 605 | 69.9 | 165 | R61 | 419.1 | 7.92 |
| 16 | 685 | 76.2 | 178 | R65 | 469.9 | 7.92 |
| 18 | 745 | 82.6 | 184 | R69 | 533.4 | 7.92 |
| 20 | 815 | 88.9 | 190 | R73 | 584.2 | 9.53 |
| 24 | 940 | 101.6 | 203 | R77 | 692.15 | 11.13 |
| NPS | F | R | W | X | A | Tg |
| 1 | 8.74 | 0.8 | 25.4 | 54 | 33.5 | 6.4 |
| 1½ | 8.74 | 0.8 | 25.4 | 70 | 48.3 | 6.4 |
| 2 | 11.91 | 0.8 | 27 | 84 | 60.3 | 6.4 |
| 2½ | 11.91 | 0.8 | 27 | 100 | 73 | 6.4 |
| 3 | 11.91 | 0.8 | 27 | 117 | 88.9 | 9.5 |
| 4 | 11.91 | 0.8 | 27 | 152 | 114.3 | 12.7 |
| 6 | 11.91 | 0.8 | 27 | 222 | 168.3 | 12.7 |
| 8 | 11.91 | 0.8 | 27 | 273 | 219.1 | 12.7 |
| 10 | 11.91 | 0.8 | 27 | 343 | 273 | 12.7 |
| 12 | 11.91 | 0.8 | 27 | 400 | 323.8 | 12.7 |
| 14 | 11.91 | 0.8 | 27 | 432 | 355.6 | 12.7 |
| 16 | 11.91 | 0.8 | 30.2 | 495 | 406.4 | 12.7 |
| 18 | 11.91 | 0.8 | 30.2 | 546 | 457.2 | 12.7 |
| 20 | 13.49 | 1.5 | 31.8 | 610 | 508 | 12.7 |
| 24 | 16.66 | 1.5 | 36.5 | 718 | 609.6 | 12.7 |
Orificio Dimensiones de brida del cuello de soldadura RTJ, Clase 900
| NPS | O | T | H | GROOVE # | P | E |
| 1 | 125 | 36.6 | 81 | R16 | 50.8 | 6.35 |
| 1½ | 155 | 36.6 | 84 | R20 | 68.27 | 6.35 |
| 2 | 165 | 36.6 | 84 | R23 | 82.55 | 7.92 |
| 2½ | 190 | 36.6 | 87 | R26 | 101.6 | 7.92 |
| 3 | 240 | 38.1 | 102 | R31 | 123.83 | 7.92 |
| 4 | 290 | 44.5 | 114 | R37 | 149.23 | 7.92 |
| 6 | 380 | 55.6 | 140 | R45 | 211.12 | 7.92 |
| 8 | 470 | 63.5 | 162 | R49 | 269.88 | 7.92 |
| 10 | 545 | 69.9 | 184 | R53 | 323.85 | 7.92 |
| 12 | 610 | 79.4 | 200 | R57 | 381 | 7.92 |
| 14 | 640 | 85.8 | 213 | R62 | 419.1 | 11.13 |
| 16 | 705 | 88.9 | 216 | R66 | 469.9 | 11.13 |
| 18 | 785 | 101.6 | 229 | R70 | 533.4 | 12.7 |
| 20 | 855 | 108 | 248 | R74 | 584.2 | 12.7 |
| 24 | 1040 | 139.7 | 292 | R78 | 692.15 | 15.88 |
| NPS | F | R | W | X | A | Tg |
| 1 | 8.74 | 0.8 | 25.4 | 54 | 33.5 | 6.4 |
| 1½ | 8.74 | 0.8 | 25.4 | 70 | 48.3 | 6.4 |
| 2 | 11.91 | 0.8 | 27 | 84 | 60.3 | 6.4 |
| 2½ | 11.91 | 0.8 | 27 | 100 | 73 | 6.4 |
| 3 | 11.91 | 0.8 | 27 | 127 | 88.9 | 9.5 |
| 4 | 11.91 | 0.8 | 27 | 159 | 114.3 | 12.7 |
| 6 | 11.91 | 0.8 | 27 | 235 | 168.3 | 12.7 |
| 8 | 11.91 | 0.8 | 27 | 298 | 219.1 | 12.7 |
| 10 | 11.91 | 0.8 | 27 | 368 | 273 | 12.7 |
| 12 | 11.91 | 0.8 | 27 | 419 | 323.8 | 12.7 |
| 14 | 16.66 | 1.5 | 33.3 | 451 | 355.6 | 12.7 |
| 16 | 16.66 | 1.5 | 36.5 | 508 | 406.4 | 12.7 |
| 18 | 19.84 | 1.5 | 39.7 | 565 | 457.2 | 12.7 |
| 20 | 19.84 | 1.5 | 39.7 | 622 | 508 | 12.7 |
| 24 | 26.97 | 2.4 | 47.6 | 749 | 609.6 | 12.7 |
Orificio Dimensiones de brida del cuello de soldadura RTJ, Clase 1500
| NPS | O | T | H | GROOVE # | P | E |
| 1 | 150 | 38.1 | 83 | R16 | 50.8 | 6.35 |
| 1½ | 180 | 38.1 | 89 | R20 | 68.27 | 6.35 |
| 2 | 215 | 38.1 | 102 | R24 | 95.25 | 7.92 |
| 2½ | 245 | 41.3 | 105 | R27 | 107.95 | 7.92 |
| 3 | 265 | 47.7 | 117 | R35 | 136.53 | 7.92 |
| 4 | 310 | 54 | 124 | R39 | 161.93 | 7.92 |
| 6 | 395 | 82.6 | 171 | R46 | 211.14 | 9.52 |
| 8 | 485 | 92.1 | 213 | R50 | 269.88 | 11.13 |
| 10 | 585 | 108 | 254 | R54 | 323.85 | 11.13 |
| 12 | 675 | 123.9 | 283 | R58 | 381 | 14.27 |
| 14 | 750 | 133.4 | 298 | R63 | 419.1 | 15.88 |
| 16 | 825 | 146.1 | 311 | R67 | 469.9 | 17.48 |
| 18 | 915 | 162 | 327 | R71 | 533.4 | 17.48 |
| 20 | 985 | 177.8 | 356 | R75 | 584.2 | 17.48 |
| 24 | 1170 | 203.2 | 406 | R79 | 692.15 | 20.62 |
| NPS | F | R | W | X | A | Tg |
| 1 | 8.74 | 0.8 | 25.4 | 52 | 33.5 | 6.4 |
| 1½ | 8.74 | 0.8 | 25.4 | 70 | 48.3 | 6.4 |
| 2 | 11.91 | 0.8 | 27 | 105 | 60.3 | 6.4 |
| 2½ | 11.91 | 0.8 | 27 | 124 | 73 | 6.4 |
| 3 | 11.91 | 0.8 | 27 | 133 | 88.9 | 9.5 |
| 4 | 11.91 | 0.8 | 27 | 162 | 114.3 | 12.7 |
| 6 | 13.49 | 1.5 | 28.6 | 229 | 168.3 | 12.7 |
| 8 | 16.66 | 1.5 | 33.3 | 292 | 219.1 | 12.7 |
| 10 | 16.66 | 1.5 | 33.3 | 368 | 273 | 12.7 |
| 12 | 23.01 | 1.5 | 39.7 | 451 | 323.8 | 12.7 |
| 14 | 26.97 | 2.4 | 44.4 | 495 | 355.6 | 12.7 |
| 16 | 30.18 | 2.4 | 50.8 | 552 | 406.4 | 12.7 |
| 18 | 30.18 | 2.4 | 50.8 | 597 | 457.2 | 12.7 |
| 20 | 33.32 | 2.4 | 54 | 641 | 508 | 12.7 |
| 24 | 36.53 | 2.4 | 58.7 | 762 | 609.6 | 12.7 |
Orificio Dimensiones de brida del cuello de soldadura RTJ, Clase 2500 RTJ
| 2500# | T | H | GROOVE # | P | E | |
| 1 | 160 | 38.1 | 92 | R18 | 60.33 | 6.35 |
| 1½ | 205 | 44.5 | 111 | R23 | 82.55 | 7.92 |
| 2 | 235 | 50.8 | 127 | R26 | 101.6 | 7.92 |
| 2½ | 265 | 57.2 | 143 | R28 | 111.13 | 9.53 |
| 3 | 305 | 66.7 | 168 | R32 | 127 | 9.53 |
| 4 | 355 | 76.2 | 190 | R38 | 157.18 | 11.13 |
| 6 | 485 | 108 | 273 | R47 | 228.6 | 12.7 |
| 8 | 550 | 127 | 318 | R51 | 279.4 | 14.27 |
| 10 | 675 | 165.1 | 419 | R55 | 342.9 | 17.48 |
| 12 | 760 | 184.2 | 464 | R60 | 406.4 | 17.48 |
| 2500# | F | R | W | X | A | Tg |
| 1 | 8.74 | 0.8 | 25.4 | 57 | 33.5 | 6.4 |
| 1½ | 11.91 | 0.8 | 27 | 79 | 48.3 | 6.4 |
| 2 | 11.91 | 0.8 | 27 | 95 | 60.3 | 6.4 |
| 2½ | 13.49 | 1.5 | 30.2 | 114 | 73 | 6.4 |
| 3 | 13.49 | 1.5 | 30.2 | 133 | 88.9 | 9.5 |
| 4 | 16.66 | 1.5 | 33.3 | 165 | 114.3 | 12.7 |
| 6 | 19.84 | 1.5 | 36.5 | 235 | 168.3 | 12.7 |
| 8 | 23.01 | 1.5 | 39.7 | 305 | 219.1 | 12.7 |
| 10 | 30.18 | 2.4 | 47.6 | 375 | 273 | 12.7 |
| 12 | 33.32 | 2.4 | 50.8 | 441 | 323.8 | 12.7 |
Detalles de producto
Las bridas de orificio están destinadas a su uso en lugar de bridas de tubería estándar cuando se debe instalar una placa de orificio o boquilla de flujo. Los pares de empapeamientos de presión se mecanizan en la brida del orificio, lo que hace innecesarios portadores de orificios separados en la pared de la tubería.
El rango de bridas de orificio de Eathu cubre todos los tamaños y rangos estándar, y todos los materiales de brida comunes.
Las bridas están disponibles en forma de soldadura o cuello de soldadura, y típicamente se suministran con dos empapeos de 1/2 "en cada brida. Tornillos de cabeceo para garantizar la facilidad de eliminación del elemento de flujo primario.
Las placas de orificio y las boquillas de flujo también se pueden suministrar. Las bridas de orificio también se pueden suministrar con kits de atornillado y juntas.
La función de la brida del orificio es medir la velocidad del flujo de la mercancía a través del sistema de tuberías. Las bridas de orificio son fáciles de reconocer porque tienen un orificio perforado en la cara de la brida perpendicular a la tubería. También tienen un conjunto adicional de pernos llamados tornillos de gato. Estos tornillos se utilizan para ayudar a separar las bridas para que se pueda realizar la inspección y/o el reemplazo de la placa de orificio. La brida de orificio es un único componente del ensamblaje de la unión de la brida del orificio. La unión de brida de orificio está compuesta por dos bridas de orificio, una placa de orificio, pernos, tuercas, tornillos de gato y dos juntas.
Las clasificaciones de presión de la brida del orificio son de 300 lb, 600 lb, 900 lb, 1500 lb, 2500 lb, y el tratamiento de la superficie de la brida del orificio es aceite antirrustado, pintura negra, pintura amarilla, galvanizado eléctrico o galvanizado caliente. Para los clientes sudamericanos, el tratamiento de superficie más popular es la pintura negra.
El embalaje para la brida de orificio es la paleta de madera contrachapada, el tiempo de entrega es de 30 días después de recibir el pedido formal. Si tiene un tiempo de entrega especial, comuníquese con Eathu, entonces podemos darle el tiempo de entrega antes. Tenga en cuenta que nuestro MOQ para la brida de orificio es 1 paleta.
Brida de orificio utilizada para: petróleo, industria química, conversación de agua, energía eléctrica, gas natural, gas de carbón, energía de agua y otros proyectos de tuberías.
pregunte ahora
Si tiene alguna duda o necesidad sobre el producto, por favor rellene el siguiente formulario y nos pondremos en contacto con usted lo antes posible.
