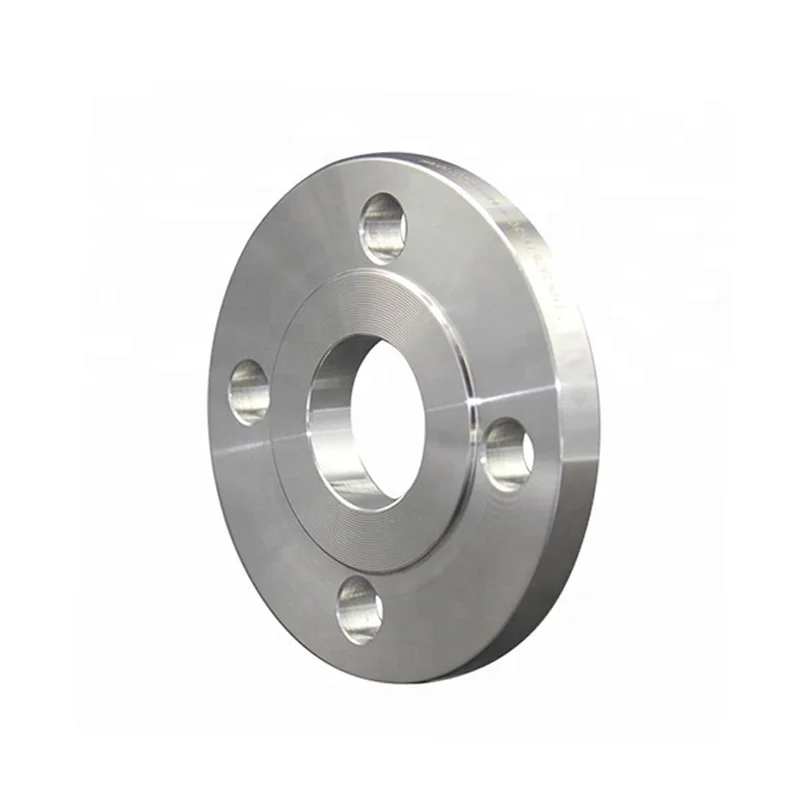

Brida articular lapea
Solicitud:
La brida de la junta lapada también se llama brida suelta o brida LJ, se usa con un extremo de trozo, que se suelde a la tubería. La ventaja de esta conexión de la brida es que la brida se puede girar. Es fácil alinear los agujeros de los pernos y fácil de instalar en tuberías de gran diámetro. Las bridas putas también son adecuadas para áreas donde la tubería debe retirarse con frecuencia para que se limpie o inspección, o donde solo la brida y no la tubería necesitan girar Al alinear el orificio del perno de la brida. Cuando se usa la brida suelta, el material del trozo de brida debe ser el mismo que el de la tubería; y el material de la brida puede ser diferente del material de la tubería, por lo que es más adecuado para transmitir medio corrosivo de tubería y sistema de tubería de metal no ferroso, para lograr lo más posible para ahorrar materiales caros (como acero inoxidable y metal no ferroso).
Según los diferentes trozos, la brida se puede subdividir en 4 tipos: anillo de soldadura a tope con brida suelta del cuello, placa de anillo de soldadura a tope tipo brida suelta, placa de soldadura plana tipo brida suelta y placa de anillo con brida tipo brida suelta.
Como los fabricantes de bridas conjuntas en China, Eathu también puede suministrar bridas OEM de acuerdo con los dibujos o diseños de los clientes.
Bienvenido a contactarnos para obtener más información.
Especificación:
Dimensiones de bridas de la junta de vuelta - ASME B16.5
Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase de 150 bridas juntas de la vuelta
| DN | NPS | Overall Diameter | Inside Diameter(Min.) | Thickness of Flange(Min.) | Overall Lenght | Lap Radius | Diameter of Hub | Number of Bolts | Diameter of Bolt Holes | Diameter of Bolt Circle |
| A | B | C | D | R | F | H | I | J | ||
| 15 | 1/2 | 90 | 22.9 | 11.2 | 16 | 3 | 30 | 4 | 15.7 | 60.3 |
| 20 | 3/4 | 100 | 28.2 | 12.7 | 16 | 3 | 38 | 4 | 15.7 | 69.9 |
| 25 | 1 | 110 | 34.9 | 14.3 | 17 | 3 | 49 | 4 | 15.7 | 79.4 |
| 32 | 1 1/4 | 115 | 43.7 | 15.9 | 21 | 5 | 59 | 4 | 15.7 | 88.9 |
| 40 | 1 1/2 | 125 | 50 | 17.5 | 22 | 6 | 65 | 4 | 15.7 | 98.4 |
| 50 | 2 | 150 | 62.5 | 19.1 | 25 | 8 | 78 | 4 | 19.1 | 120.7 |
| 65 | 2 1/2 | 180 | 75.4 | 22.3 | 29 | 8 | 90 | 4 | 19.1 | 139.7 |
| 80 | 3 | 190 | 91.4 | 23.9 | 30 | 10 | 108 | 4 | 19.1 | 152.4 |
| 90 | 3 1/2 | 215 | 104.1 | 23.9 | 32 | 10 | 122 | 8 | 19.1 | 177.8 |
| 100 | 4 | 230 | 116.8 | 23.9 | 33 | 11 | 135 | 8 | 19.1 | 190.5 |
| 125 | 5 | 255 | 144.4 | 23.9 | 36 | 11 | 164 | 8 | 22.4 | 215.9 |
| 150 | 6 | 280 | 171.4 | 25.4 | 40 | 13 | 192 | 8 | 22.4 | 241.3 |
| 200 | 8 | 345 | 222.2 | 28.6 | 44 | 13 | 246 | 8 | 22.4 | 298.5 |
| 250 | 10 | 405 | 277.4 | 30.2 | 49 | 13 | 305 | 12 | 25.4 | 362 |
| 300 | 12 | 485 | 328.2 | 31.8 | 56 | 13 | 365 | 12 | 25.4 | 431.8 |
| 350 | 14 | 535 | 360.2 | 35 | 79 | 13 | 400 | 12 | 28.4 | 476.3 |
| 400 | 16 | 595 | 411.2 | 36.6 | 87 | 13 | 457 | 16 | 28.4 | 539.8 |
| 450 | 18 | 635 | 462.3 | 39.7 | 97 | 13 | 505 | 16 | 31.75 | 577.9 |
| 500 | 20 | 700 | 514.4 | 42.9 | 103 | 13 | 559 | 20 | 31.75 | 635 |
| 600 | 24 | 815 | 616 | 47.7 | 111 | 13 | 663 | 20 | 35.1 | 749.3 |
Dimensiones y gráficos de peso para ASME/ANSI B16.5 Clase 300 bridas de junta de la vuelta
| DN | NPS | Overall Diameter | Inside Diameter(Min.) | Thickness of Flange(Min.) | Overall Lenght | Lap Radius | Diameter of Hub | Number of Bolts | Diameter of Bolt Holes | Diameter of Bolt Circle |
| A | B | C | D | R | F | H | I | J | ||
| 15 | 1/2 | 95 | 22.9 | 14.3 | 22 | 3 | 38 | 4 | 15.7 | 66.7 |
| 20 | 3/4 | 115 | 28.2 | 15.9 | 25 | 3 | 48 | 4 | 19 | 82.6 |
| 25 | 1 | 125 | 34.9 | 17.5 | 27 | 3 | 54 | 4 | 19 | 88.9 |
| 32 | 1 1/4 | 135 | 43.7 | 19.1 | 27 | 5 | 64 | 4 | 19 | 98.4 |
| 40 | 1 1/2 | 155 | 50 | 20.7 | 30 | 6 | 70 | 4 | 22.3 | 114.3 |
| 50 | 2 | 165 | 62.5 | 22.3 | 33 | 8 | 84 | 8 | 19 | 127 |
| 65 | 2 1/2 | 190 | 75.4 | 25.4 | 38 | 8 | 100 | 8 | 22.3 | 149.2 |
| 80 | 3 | 210 | 91.4 | 28.6 | 43 | 10 | 117 | 8 | 22.3 | 168.3 |
| 90 | 3 1/2 | 230 | 104.1 | 30.2 | 44 | 10 | 133 | 8 | 22.3 | 184.2 |
| 100 | 4 | 255 | 116.8 | 31.8 | 48 | 11 | 146 | 8 | 22.3 | 200 |
| 125 | 5 | 280 | 144.4 | 35 | 51 | 11 | 178 | 8 | 22.3 | 235 |
| 150 | 6 | 320 | 171.4 | 36.6 | 52 | 13 | 206 | 12 | 22.3 | 269.9 |
| 200 | 8 | 380 | 222.2 | 41.3 | 62 | 13 | 260 | 12 | 25.4 | 330.2 |
| 250 | 10 | 445 | 277.4 | 47.7 | 95 | 13 | 321 | 16 | 28.4 | 387.4 |
| 300 | 12 | 520 | 328.2 | 50.8 | 102 | 13 | 375 | 16 | 31.7 | 450.8 |
| 350 | 14 | 585 | 360.2 | 54 | 111 | 13 | 425 | 20 | 31.7 | 514.4 |
| 400 | 16 | 650 | 411.2 | 57.2 | 121 | 13 | 483 | 20 | 35 | 571.5 |
| 450 | 18 | 710 | 462.3 | 60.4 | 130 | 13 | 533 | 24 | 35 | 628.6 |
| 500 | 20 | 775 | 514.4 | 63.5 | 140 | 13 | 587 | 24 | 35 | 685.8 |
| 600 | 24 | 915 | 616 | 69.9 | 152 | 13 | 702 | 24 | 41.1 | 812.8 |
Dimensiones y gráficos de peso para ASME/ANSI B16.5 Clase 400 Bendas de junta de la vuelta
| DN | NPS | Overall Diameter | Inside Diameter(Min.) | Thickness of Flange(Min.) | Overall Lenght | Lap Radius | Diameter of Hub | Number of Bolts | Diameter of Bolt Holes | Diameter of Bolt Circle |
| A | B | C | D | R | F | H | I | J | ||
| 15 | 1/2 | 95 | 22.9 | 14.3 | 22 | 3 | 38 | 4 | 15.7 | 66.7 |
| 20 | 3/4 | 115 | 28.2 | 15.9 | 25 | 3 | 48 | 4 | 19 | 82.6 |
| 25 | 1 | 125 | 34.9 | 17.5 | 27 | 3 | 54 | 4 | 19 | 88.9 |
| 32 | 1 1/4 | 135 | 43.7 | 20.7 | 29 | 5 | 64 | 4 | 19 | 98.4 |
| 40 | 1 1/2 | 155 | 50 | 22.3 | 32 | 6 | 70 | 4 | 22.3 | 114.3 |
| 50 | 2 | 165 | 62.5 | 25.4 | 37 | 8 | 84 | 8 | 19 | 127 |
| 65 | 2 1/2 | 190 | 75.4 | 28.6 | 41 | 8 | 100 | 8 | 22.3 | 149.2 |
| 80 | 3 | 210 | 91.4 | 31.8 | 46 | 10 | 117 | 8 | 22.3 | 168.3 |
| 90 | 3 1/2 | 230 | 104.1 | 35 | 49 | 10 | 133 | 8 | 25.4 | 184.2 |
| 100 | 4 | 255 | 116.8 | 35 | 51 | 11 | 146 | 8 | 25.4 | 200 |
| 125 | 5 | 280 | 144.5 | 38.1 | 54 | 11 | 178 | 8 | 25.4 | 235 |
| 150 | 6 | 320 | 171.4 | 41.3 | 57 | 13 | 206 | 12 | 35.4 | 269.9 |
| 200 | 8 | 380 | 222.2 | 47.7 | 68 | 13 | 260 | 12 | 28.4 | 330.2 |
| 250 | 10 | 445 | 277.4 | 54 | 102 | 13 | 321 | 16 | 31.75 | 387.4 |
| 300 | 12 | 520 | 328.2 | 57.2 | 108 | 13 | 375 | 16 | 35.1 | 450.8 |
| 350 | 14 | 585 | 360.2 | 60.4 | 117 | 13 | 425 | 20 | 35.1 | 514.4 |
| 400 | 16 | 650 | 411.2 | 63.5 | 127 | 13 | 483 | 20 | 38.1 | 571.5 |
| 450 | 18 | 710 | 462.3 | 66.7 | 137 | 13 | 533 | 24 | 38.1 | 628.6 |
| 500 | 20 | 775 | 514.4 | 69.9 | 146 | 13 | 587 | 24 | 41.1 | 685.8 |
| 600 | 24 | 915 | 616 | 76.2 | 159 | 13 | 702 | 24 | 47.8 | 812.8 |
Dimensiones y gráficos de peso para ASME/ANSI B16.5 Clase 600 Rendídas de la vuelta
| DN | NPS | Overall Diameter | Inside Diameter(Min.) | Thickness of Flange(Min.) | Overall Lenght | Lap Radius | Diameter of Hub | Number of Bolts | Diameter of Bolt Holes | Diameter of Bolt Circle |
| A | B | C | D | R | F | H | I | J | ||
| 15 | 1/2 | 95 | 22.9 | 14.3 | 22 | 3 | 38 | 4 | 15.7 | 66.7 |
| 20 | 3/4 | 115 | 28.2 | 15.9 | 25 | 3 | 48 | 4 | 19 | 82.6 |
| 25 | 1 | 125 | 34.9 | 17.5 | 27 | 3 | 54 | 4 | 19 | 88.9 |
| 32 | 1 1/4 | 135 | 43.7 | 20.7 | 29 | 5 | 64 | 4 | 19 | 98.4 |
| 40 | 1 1/2 | 155 | 50 | 22.3 | 32 | 6 | 70 | 4 | 22.3 | 114.3 |
| 50 | 2 | 165 | 62.5 | 25.4 | 37 | 8 | 84 | 8 | 19 | 127 |
| 65 | 2 1/2 | 190 | 75.4 | 28.6 | 41 | 8 | 100 | 8 | 22.3 | 149.2 |
| 80 | 3 | 210 | 91.4 | 31.8 | 46 | 10 | 117 | 8 | 22.3 | 168.3 |
| 90 | 3 1/2 | 230 | 104.1 | 35 | 49 | 10 | 133 | 8 | 25.4 | 184.2 |
| 100 | 4 | 275 | 116.8 | 38.1 | 54 | 11 | 152 | 8 | 25.4 | 215.9 |
| 125 | 5 | 330 | 144.4 | 44.5 | 60 | 11 | 189 | 8 | 28.4 | 266.7 |
| 150 | 6 | 355 | 171.4 | 47.7 | 67 | 13 | 222 | 12 | 28.4 | 292.1 |
| 200 | 8 | 420 | 222.2 | 55.6 | 76 | 13 | 273 | 12 | 31.75 | 349.2 |
| 250 | 10 | 510 | 277.4 | 63.5 | 111 | 13 | 343 | 16 | 35.1 | 431.8 |
| 300 | 12 | 560 | 328.2 | 66.7 | 117 | 13 | 400 | 20 | 35.1 | 489 |
| 350 | 14 | 605 | 360.2 | 69.9 | 127 | 13 | 432 | 20 | 38.1 | 527 |
| 400 | 16 | 685 | 411.2 | 76.2 | 140 | 13 | 495 | 20 | 41.1 | 603.2 |
| 450 | 18 | 745 | 462.3 | 82.6 | 152 | 13 | 546 | 20 | 44.5 | 654 |
| 500 | 20 | 815 | 514.4 | 88.9 | 165 | 13 | 610 | 24 | 44.5 | 723.9 |
| 600 | 24 | 940 | 616 | 101.6 | 184 | 13 | 718 | 24 | 50.8 | 838.2 |
Dimensiones y gráficos de peso para ASME/ANSI B16.5 Clase 900 Bendas de junta de la vuelta
| DN | NPS | Overall Diameter | Inside Diameter(Min.) | Thickness of Flange(Min.) | Overall Lenght | Lap Radius | Diameter of Hub | Number of Bolts | Diameter of Bolt Holes | Diameter of Bolt Circle |
| A | B | C | D | R | F | H | I | J | ||
| 15 | 1/2 | 120 | 22.9 | 22.3 | 32 | 3 | 38 | 4 | 22.3 | 82.6 |
| 20 | 3/4 | 130 | 28.2 | 25.4 | 35 | 3 | 44 | 4 | 22.3 | 88.9 |
| 25 | 1 | 150 | 34.9 | 28.6 | 41 | 3 | 52 | 4 | 25.4 | 101.6 |
| 32 | 1 1/4 | 160 | 43.7 | 28.6 | 41 | 5 | 64 | 4 | 25.4 | 111.1 |
| 40 | 1 1/2 | 180 | 50 | 31.8 | 44 | 6 | 70 | 4 | 28.4 | 123.8 |
| 50 | 2 | 215 | 62.5 | 38.1 | 57 | 8 | 105 | 8 | 25.4 | 165.1 |
| 65 | 2 1/2 | 245 | 75.4 | 41.3 | 64 | 8 | 124 | 8 | 28.4 | 190.5 |
| 80 | 3 | 240 | 91.4 | 38.1 | 54 | 10 | 127 | 8 | 25.4 | 190.5 |
| 100 | 4 | 290 | 116.8 | 44.5 | 70 | 11 | 159 | 8 | 31.7 | 235 |
| 125 | 5 | 350 | 144.4 | 50.8 | 79 | 11 | 190 | 8 | 35 | 279.4 |
| 150 | 6 | 380 | 171.4 | 55.6 | 86 | 13 | 235 | 12 | 31.7 | 317.5 |
| 200 | 8 | 470 | 222.2 | 63.5 | 114 | 13 | 298 | 12 | 38.1 | 393.7 |
| 250 | 10 | 545 | 277.4 | 69.9 | 127 | 13 | 368 | 16 | 38.1 | 469.9 |
| 300 | 12 | 610 | 328.2 | 79.4 | 143 | 13 | 419 | 20 | 38.1 | 533.4 |
| 350 | 14 | 640 | 360.2 | 85.8 | 156 | 13 | 451 | 20 | 41.1 | 558.8 |
| 400 | 16 | 705 | 411.2 | 88.9 | 165 | 13 | 508 | 20 | 44.4 | 616 |
| 450 | 18 | 785 | 462.3 | 101.6 | 190 | 13 | 565 | 20 | 50.8 | 685.8 |
| 500 | 20 | 855 | 514.4 | 108 | 210 | 13 | 622 | 20 | 53.8 | 749.3 |
| 600 | 24 | 1040 | 616 | 139.7 | 267 | 13 | 749 | 20 | 66.55 | 901.7 |
Dimensiones y gráfico de peso para ASME/ANSI B16.5 Clase 1500 bridas de junta de la vuelta
| DN | NPS | Overall Diameter | Inside Diameter(Min.) | Thickness of Flange(Min.) | Overall Lenght | Lap Radius | Diameter of Hub | Number of Bolts | Diameter of Bolt Holes | Diameter of Bolt Circle |
| A | B | C | D | R | F | H | I | J | ||
| 15 | 1/2 | 120 | 22.9 | 22.3 | 32 | 3 | 38 | 4 | 22.3 | 82.6 |
| 20 | 3/4 | 130 | 28.2 | 25.4 | 35 | 3 | 44 | 4 | 22.3 | 88.9 |
| 25 | 1 | 150 | 34.9 | 28.6 | 41 | 3 | 52 | 4 | 25.4 | 101.6 |
| 32 | 1 1/4 | 160 | 43.7 | 28.6 | 41 | 5 | 64 | 4 | 25.4 | 111.1 |
| 40 | 1 1/2 | 180 | 50 | 31.8 | 44 | 6 | 70 | 4 | 28.4 | 123.8 |
| 50 | 2 | 215 | 62.5 | 38.1 | 57 | 8 | 105 | 8 | 25.4 | 165.1 |
| 65 | 2 1/2 | 245 | 75.4 | 41.3 | 64 | 8 | 124 | 8 | 28.4 | 190.5 |
| 80 | 3 | 265 | 91.4 | 47.7 | 73 | 10 | 133 | 8 | 25.4 | 190.5 |
| 100 | 4 | 310 | 116.8 | 54 | 90 | 11 | 162 | 8 | 31.7 | 235 |
| 125 | 5 | 375 | 144.4 | 73.1 | 105 | 11 | 197 | 8 | 35 | 279.4 |
| 150 | 6 | 395 | 171.4 | 82.6 | 119 | 13 | 229 | 12 | 31.7 | 317.5 |
| 200 | 8 | 485 | 222.2 | 92.1 | 143 | 13 | 292 | 12 | 38.1 | 393.7 |
| 250 | 10 | 585 | 277.4 | 108 | 178 | 13 | 368 | 16 | 38.1 | 469.9 |
| 300 | 12 | 675 | 328.2 | 123.9 | 219 | 13 | 451 | 20 | 38.1 | 533.4 |
| 350 | 14 | 750 | 360.2 | 133.4 | 241 | 13 | 495 | 20 | 41.1 | 558.8 |
| 400 | 16 | 825 | 411.2 | 146.1 | 260 | 13 | 552 | 20 | 44.4 | 616 |
| 450 | 18 | 915 | 462.3 | 162 | 276 | 13 | 597 | 20 | 50.8 | 685.8 |
| 500 | 20 | 985 | 514.4 | 177.8 | 292 | 13 | 641 | 20 | 53.8 | 749.3 |
| 600 | 24 | 1170 | 616 | 203.2 | 330 | 13 | 762 | 20 | 66.55 | 901.7 |
Dimensiones y gráficos de peso para ASME/ANSI B16.5 Clase 2500 bridas juntas de la vuelta
| DN | NPS | Overall Diameter | Inside Diameter(Min.) | Thickness of Flange(Min.) | Overall Lenght | Lap Radius | Diameter of Hub | Number of Bolts | Diameter of Bolt Holes | Diameter of Bolt Circle |
| A | B | C | D | R | F | H | I | J | ||
| 15 | 1/2 | 135 | 22.9 | 30.2 | 40 | 3 | 43 | 4 | 22.3 | 88.9 |
| 20 | 3/4 | 140 | 28.2 | 31.8 | 43 | 3 | 51 | 4 | 22.3 | 95.2 |
| 25 | 1 | 160 | 34.9 | 35 | 48 | 3 | 57 | 4 | 25.4 | 108 |
| 32 | 1 1/4 | 185 | 43.7 | 38.1 | 52 | 5 | 73 | 4 | 28.4 | 130.2 |
| 40 | 1 1/2 | 205 | 50 | 44.5 | 60 | 6 | 79 | 4 | 31.75 | 146 |
| 50 | 2 | 235 | 62.5 | 50.9 | 70 | 8 | 95 | 8 | 28.4 | 171.4 |
| 65 | 2 1/2 | 265 | 75.4 | 57.2 | 79 | 8 | 114 | 8 | 31.75 | 196.8 |
| 80 | 3 | 305 | 91.4 | 66.7 | 92 | 10 | 133 | 8 | 35.1 | 228.6 |
| 100 | 4 | 355 | 116.8 | 76.2 | 108 | 11 | 165 | 8 | 41.1 | 273 |
| 125 | 5 | 420 | 144.4 | 92.1 | 130 | 11 | 203 | 8 | 47.8 | 323.8 |
| 150 | 6 | 485 | 171.4 | 108 | 152 | 13 | 235 | 8 | 53.8 | 368.3 |
| 200 | 8 | 550 | 222.2 | 127 | 178 | 13 | 305 | 12 | 53.8 | 438.2 |
| 250 | 10 | 675 | 277.4 | 165.1 | 229 | 13 | 375 | 12 | 66.55 | 539.8 |
| 300 | 12 | 760 | 328.2 | 184.2 | 254 | 13 | 441 | 12 | 73.15 | 619.1 |
Detalles de producto
1. Tamaño: 1/2 "-60" (DN10-DN1500)
2. Tipos: brida de soldadura, brida del cuello de soldadura, brida ciega, brida de soldadura de zócalo, brida roscada, brida de la junta, brida de placa, cuello de soldadura larga y brida plana, etc.
3. Material:
Acero al carbono: ASTM A105/SA105N; ASTM A350 LF1; Lf2; Cl1/cl2, ct20; 16mn; rst37.2; s235jr; p245gh; p250gh; p250ghm; C22.8; Q235; 15crmo
Acero inoxidable: ASTM A182, SS303; SS304/304L; SS316/316L; F321; F347; 316ti; A182F317/317L; SS400; SF440
Acero de aleación: ASTM A182 A182 F12, F11, F22, F5, F9, F91, F51, F53, F55, F60, F44, F304H, F316H, F317H, F321H, F347H, Inconel 600,625,825, etc.
4. Grosor de la pared: SCH5, SCH10, SCH20, SCH30, STD, SCH40, XS, SCH80, SCH100, SCH120, SCH140, XXS, SCH160;
5. Tipo de conexión: cara elevada, cara plana, articulación del tipo de anillo, cara de articulación de lapsidad, gran hombre-mujer, pequeño hombre-mujer, lengua grande, ranura, pequeña lengua, ranura, etc.
6. Calificación de presión:
• ANSI B16.5: Clase 150 bridas de clase 2500 ；
• DIN: 6BAR 10BAR 16BAR 25BAR 40BAR 63BAR
• JIS: bridas de 5K-30k
• EN1092-1: 6BAR 10BAR 16BAR 25BAR 40BAR 63BAR 100BAR
7. Tratamiento de la superficie: aceite anti-romelo, negro / amarillo / transparente / galvanizado eléctrico / galvanizado caliente.
8. Superficie de sellado: FF, RF, MFM, TG, FF
9. Tratamiento térmico: normalización, recocido, templado de enfriamiento.
10. Estándar:
(1) ANSI B16.5, A105 150LB / 300LB / 600LB / 900LB / 1500LB / 2500LB
(2) DIN 2573 PN6 / DIN 2576 PN10 / DIN2502 PN16 / DIN2503 P25-40 / DIN2566 PN16 / DIN2631-2635 RST37.2 o C22.8
(3) JIS SS400 o SF440 5K / 10K / 16K / 20K / 30K
(4) UNI 2276 /2277 /2278 /6084 /6089 /6090 /2544 /2282 / 6091-6093
(5) EN1092 PN6 / PN10 / PN16 / PN25 / PN40 / TIPO1 TIPO2 TIPO 5 TIPO 12 TIPO 13
(6) BS4504 SANI1123 1000/3, 1600/3, 2500/3, T/D, T/E, T/F Bida de acero al carbono
(7) AS2129 Tabla D / Tabla H / Tabla E Brida de acero al carbono
(8) GOST 12820-80 / 12821-80 Bida de acero al carbono
11. Tolerancia: según el estándar.
12. Certificación: ISO9001: 2000, API, CE
13. Paquete: paleta o estuche de madera contrachapada.
14. Tiempo de entrega: como más temprano, dentro del período requerido por el cliente.
15. Término de pago: T/T o L/C
16. Muestra: disponible
17. Precio: >> Obtenga la lista de precios más nueva (lista de precios y técnico)
pregunte ahora
Si tiene alguna duda o necesidad sobre el producto, por favor rellene el siguiente formulario y nos pondremos en contacto con usted lo antes posible.
