Accesorios de tubería forjados

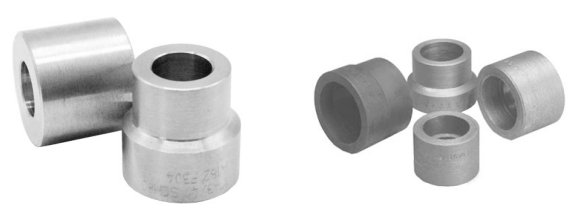

Insertos reductores de soldadura del zócalo

Solicitud:

Tamaño: 1/8 "-4" Tipo de soldadura de enchufe

Presión:

SELED SELED: 3000LB 6000LB 9000LB (SCH80 SCH160 XXS)

Enhebrado: 2000LB 3000LB 6000LB (SCH80 SCH160 XXS)

Conección: hilo (npt, bsp, rp, g), soldadura de enchufe

Tipo: codo, tee, pezón, acoplamiento completo, medio acoplamiento, lateral, cruz, tapa, enchufe, pezón hexadecimal, pezón, unión, soldolet, sockolet, threadolet, nipolet, elbolet, latrolet, etc.

Estándar: ANSI B16.11, EN10241, BS3799, JIS B2316, MSS SP-83, MSS SP-79;

Material: acero inoxidable, acero al carbono y acero inoxidable dúplex

Especificación:

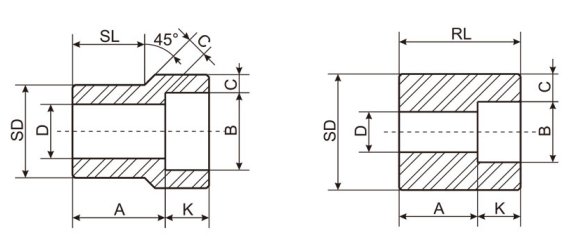

Socket Weld Reducing Insert Dimension

Nom.	Type		Socket		Shank	Laying Length		Bore		Wall Min.		Length
Pipe			Dia.	Depth	Dia.	A		D		C		SL		RL(Min.)
Size			B	Min.	SD							SL		RL(Min.)
	3000	6000		K		3000	6000	3000	6000	3000	6000	3000	6000	3000	6000
3/8"×1/4"	1	1	14.35	10	17.15	19	21	9	6.5	3.78	4.6	14	16	---	---
1/2"×3/8"	1	1	17.78	10	21.34	21	23	12.5	9	4.01	5.03	16	16	---	---
1/2"×1/4"	1	1	14.35	10	21.34	21	21	9	6.5	3.78	4.6	16	16	---	---
3/4"×1/2"	1	1	21.97	10	26.67	22	25	16	11.5	4.67	5.97	17	19	---	---
3/4"×3/8"	2	1	17.78	10	26.67	16	22	12.5	9	4.01	5.03	---	19	27
3/4"×1/4"	2	2	14.35	10	26.67	18	22	9	6.5	3.78	4.6	---	---	27	32
1"×3/4"	1	1	27.31	13	33.4	24	28	21	15.5	4.9	6.96	19	21	---	---
1"×1/2"	2	1	21.97	10	33.4	16	28	16	11.5	4.67	5.97	---	21	28	---
1"×3/8"	2	2	17.78	10	33.4	18	22	12.5	9	4.01	5.03	---	---	28	33
1"×1/4"	2	2	14.35	10	33.4	19	24	9	6.5	3.78	4.6	---	---	28	33
1-1/4"×1"	1	1	34.04	13	42.16	25	30	26.5	20.5	5.69	7.92	21	22	---	---
1-1/4"×3/4"	2	2	27.31	13	42.16	18	21	21	15.5	4.9	6.96	---	---	32	35
1-1/4"×1/2"	2	2	21.97	10	42.16	19	22	16	11.5	4.67	5.97	---	---	32	35
1-1/4"×3/8"	2	2	17.78	10	42.16	21	24	12.5	9	4.01	5.03	---	---	32	35
1-1/4"×1/4"	2	2	14.35	10	42.16	22	25	9	6.5	3.78	4.6	---	---	32	35
1-1/2"×1-1/4"	1	1	42.8	13	48.26	28	35	35	29.5	6.07	7.92	22	25	---	---
1-1/2"×1"	2	1	34.04	13	48.26	18	29	26.5	20.5	5.69	7.92	---	25	33	---
1-1/2"×3/4"	2	2	27.31	13	48.26	19	25	21	15.5	4.9	6.96	---	---	33	40
1-1/2"×1/2"	2	2	21.97	10	48.26	21	27	16	11.5	4.67	5.97	---	---	33	40
1-1/2"×3/8"	2	2	17.78	10	48.26	22	28	12.5	9	4.01	5.03	---	---	33	40
2"×1-1/2"	1	1	48.9	13	60.32	32	39	41	34	6.35	8.9	25	28	---	---
2"×1-1/4"	2	2	42.8	13	60.32	21	24	35	29.5	6.07	7.92	---	---	38	41
2"×1"	2	2	34.04	13	60.32	22	25	26.5	21	5.69	7.92	---	---	38	41
2"×3/4"	2	2	27.31	13	60.32	24	27	21	15.5	4.9	6.96	---	---	38	41
2"×1/2"	2	2	21.97	10	60.32	25	28	16	11.5	4.67	5.97	---	---	38	41
2-1/2"×2"	1	1	61.37	16	73.02	46	43	52.5	43	6.93	10.92	32	38	---	---
2-1/2"×1-1/2"	2	2	48.9	13	73.02	35	35	41	34	6.35	---	---	---	54	54
2-1/2"×1-1/4"	2	2	42.8	13	73.02	37	37	35	29.5	6.07	---	---	---	54	54
2-1/2"×1"	2	2	34.04	13	73.02	38	38	26.5	21	5.69	---	---	---	54	54
2-1/2"×3/4"	2	2	27.31	13	73.02	40	38	21	15.5	4.9	---	---	---	54	54
3"×2-1/2"	1	1	74.07	16	88.9	38	57	62.5	54	8.76	---	32	45	---	---
3"×2"	2	2	61.37	16	88.9	25	32	52.5	43	6.93	---	---	---	48	54
3"×1-1/2"	2	2	48.9	13	88.9	29	32	41	34	6.35	---	---	---	48	54
3"×1-1/4"	2	2	42.8	13	88.9	30	32	35	29.5	6.07	---	---	---	48	54
3"×1"	2	2	34.04	13	88.9	32	32	26.5	21	5.69	---	---	---	48	54
4"×3"	2	---	90.04	16	114.3	33	---	78	---	9.5	---	---	---	60	---
4"×2-1/2"	2	---	74.07	16	114.3	38	---	62.5	---	8.76	---	---	---	60	---
4"×2"	2	---	61.37	16	114.3	38	---	52.5	---	6.93	---	---	---	60	---
4"×1-1/2"	2	---	48.9	13	114.3	42	---	41	---	6.35	---	---	---	60	---
4"×1-1/4"	2	---	42.8	13	114.3	43	---	35	---	6.07	---	---	---	60	---

(1) Dimensions in Millimeters.

(2) At the option of the manufacturer type 2 reducer may be furnished in type 1 configuration.

Dimensional Tolerance of Reducer Insert

Laying Length A	Socket 3/8" through 3/4" +1.50mm/-0.00mm
	Size 1" through 2" +2.00mm/-0.00mm
	Size 2-1/2" through 4" +2.50mm/-0.00mm
Socket Diameter B	Size 1/4" through 2" ±0.25mm
Socket Diameter B	Size 2-1/2" through 3" +0.40mm/-0.25mm
Bore D	Size 1/4" through 2" ±0.80mm
Bore D	Size 2-1/2" through 3" ±1.50mm
Shank Diamter SD	Size 3/8" through 1-1/2" ±0.25mm
	Size 2" through 3" ±0.50mm
	Size 4" through ±0.75mm
Shank Length SL	Size 3/8" through 3/4" +0.00mm/-1.50mm
	Size 1" through 2" +0.00mm/-2.00mm
	Size 2-1/2" through 4" +0.00mm/-2.50mm

Detalles de producto

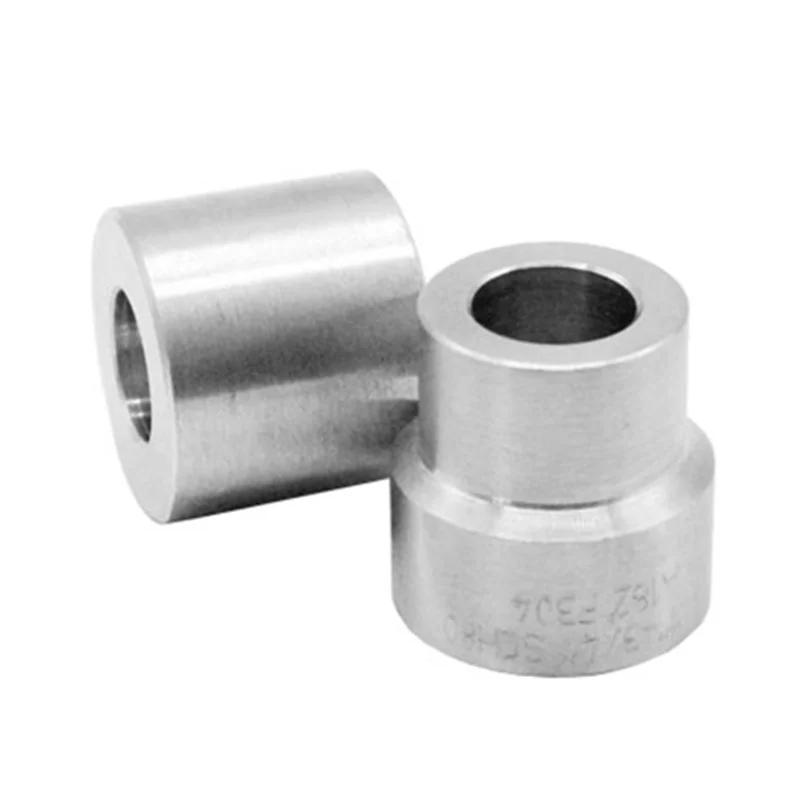

Inserto reductor de soldadura del zócalo: en el sistema de tubería, el inserto reductor de la soldadura del enchufe es cambiar la dirección de la tubería. Inserto reductor de soldadura del zócalo fabricado por acero redondo o lingote de acero. Heat el lingote de acero, colóquelos en cavidades de moho, luego forjando en blanco por máquina de forja y luego después del mecanizado de torno formando un ajuste de tubería de codo a alta presión.
